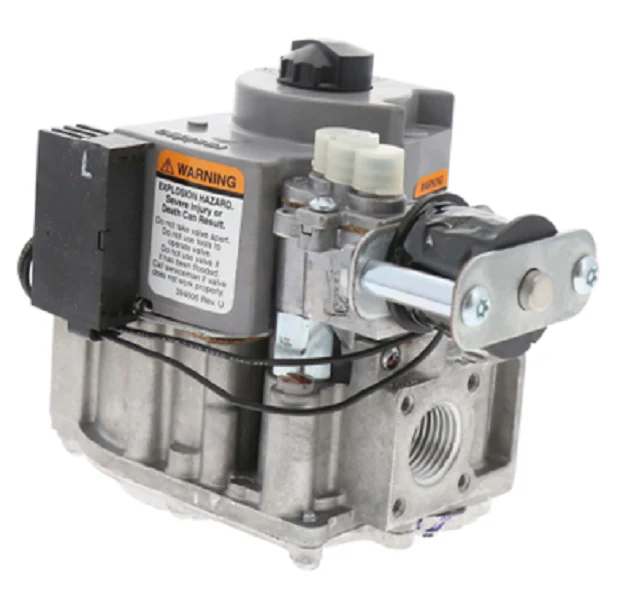

Resideo VR8205Q2746T Gas Valve
The Resideo VR8205Q2746T is a high-performance, 2-stage direct ignition gas valve designed for 24V furnace and boiler applications. This combination gas control features a 1/2" NPT inlet and outlet, providing a compact footprint for tight furnace cabinets without compromising on flow capacity. Engineered for precision, the VR8205Q2746T replacement manages both high and low fire stages, ensuring optimal combustion efficiency and consistent heat output. As a direct spark ignition gas valve, it eliminates the need for a standing pilot, reducing fuel waste and simplifying the ignition sequence. The unit includes a straight-through body pattern and standard 3/16" male quick-connect terminals for seamless electrical integration. For field troubleshooting, the valve features pressure taps on both the inlet and outlet sides, allowing technicians to verify manifold pressure with a manometer during startup or diagnostic cycles. This HVAC gas valve is a reliable solution for maintaining intermittent pilot or direct ignition systems in residential and light commercial settings.
Key Benefits for Technicians- Dual-Stage Modulation: Controls high and low fire settings to match thermal load requirements and improve equipment AFUE ratings.
- Simplified Wiring: Features standard 1/4" and 3/16" terminals for fast connection to 24V furnace control boards.
- Integrated Pressure Regulation: Factory-set for natural gas with easy field adjustment points for fine-tuning manifold pressure.
- Compact Housing: Fits within standard vestibules where space is limited on older OEM gas valve replacements.
- Safety Shutdown: Built-in redundancy ensures immediate fuel shut-off in the event of flame failure or power loss.
Can the VR8205Q2746T be converted to Liquid Propane (LP)?
Yes, this valve can be converted using a Resideo LP conversion kit. Technicians must swap the regulator spring and adjust the pressure settings to match LP requirements per the manufacturer's specifications.
What are the electrical requirements for this gas control?
This valve operates on a 24V AC, 60Hz circuit. It typical draws 0.5A during the main valve stroke, making it compatible with most standard HVAC transformers.
Does this valve support hot surface ignition (HSI)?
Yes, the VR8205Q series is designed for DSI and HSI applications where the ignition source is controlled by a primary ignition module or furnace integrated control.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
