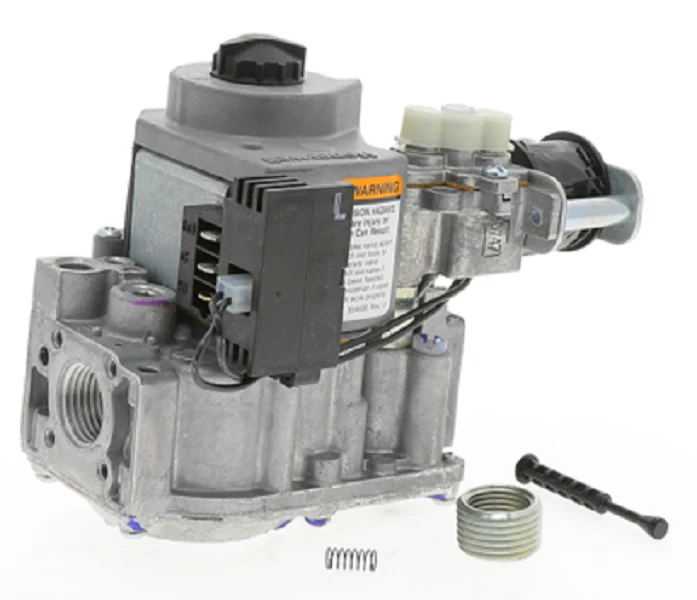

Resideo VR8205Q2555 Valve
The Resideo VR8205Q2555 is a high-performance 1/2" dual automatic combination gas valve engineered specifically for two-stage gas furnaces utilizing direct spark ignition (DSI) or hot surface ignition (HSI) systems. This 24VAC gas valve features a standard opening profile with a dual-stage regulator factory-set at 1.7" W.C. for low fire and 3.5" W.C. for high fire. With a flow capacity ranging from 20 to 200 CFH and a 0.5 PSI pressure rating, it provides the precise modulation required for modern high-efficiency HVAC equipment. The 1/2" x 1/2" inlet/outlet ports include a 1/8" NPT pressure tap with plug for accurate manometer readings during commissioning. This 2-stage 24V gas valve includes an LP conversion kit and a 1/2" x 3/8" reducer bushing, ensuring versatility for natural gas or liquid propane applications. When performing a Resideo gas valve replacement, the VR8205Q2555 offers the reliability needed for critical heating cycles in residential and light commercial environments.
Key Benefits for Technicians- Dual-Stage Regulation: Ensures precise manifold pressure for both low and high-fire stages, optimizing combustion efficiency.
- Universal Ignition Compatibility: Designed for seamless integration with hot surface ignition and direct spark ignition controls.
- Compact Footprint: Narrow 1/2-inch NPT design allows for easier installation in tight furnace vestibules and manifold arrays.
- Field-Ready Versatility: Includes a gas valve propane conversion kit and reducer bushing to handle various fuel and piping requirements on-site.
- Reliable Pilot-Free Operation: Provides 100% shut-off safety without the need for a standing pilot, reducing call-backs.
Can the VR8205Q2555 be used on a single-stage furnace?
This valve is specifically designed for two-stage operation. For single-stage systems, a standard VR8205 series single-stage valve should be used to ensure correct manifold pressure control.
Is this valve compatible with intermittent pilot systems?
No, the VR8205Q2555 is engineered strictly for direct ignition systems (DSI/HSI). Intermittent pilot systems require a valve with a pilot gas outlet.
What is the maximum pressure rating for this component?
The valve is rated for a maximum inlet pressure of 1/2 PSI (14" W.C.). Always verify supply pressure before installation to prevent damage to the internal regulator.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
