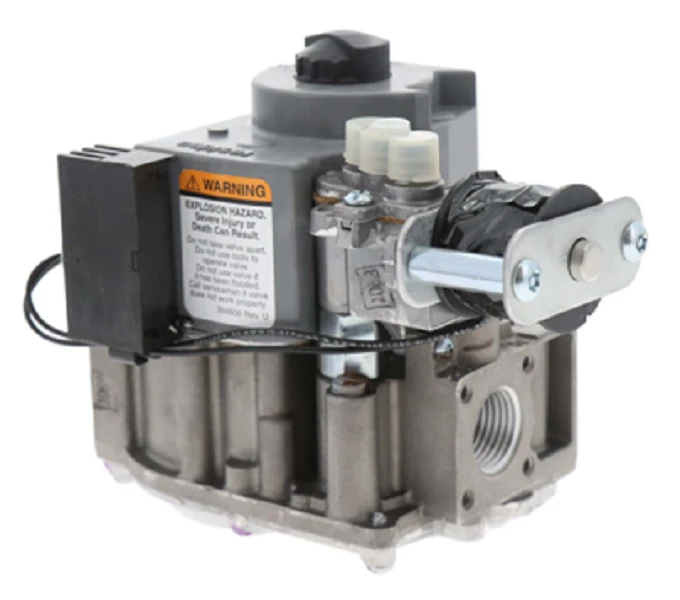

Resideo VR8205N8829T Gas Valve
When you're out in the field servicing high-efficiency gas-fired equipment, you need a reliable component that integrates seamlessly with existing controls. The Resideo VR8205N8829T Gas Valve is an industrial-grade 24V dual direct ignition gas valve engineered for hot surface ignition (HSI) and direct spark ignition (DSI) systems. This combination gas control features a 1/2" x 1/2" straight-through NPT inlet/outlet, providing a high-capacity flow of 30 to 415 cfh for furnaces and boilers. The internal integrated pressure regulator is factory-set for natural gas at 3.5 in. wc, but can be converted for LP gas (Liquid Propane) with the appropriate kit. Its dual safety shutoff design utilizes a solenoid-operated first valve and a diaphragm-operated second valve to maintain strict system integrity. With a slow opening ignition sequence and a wide operating temperature range of -40°F to +175°F, this valve ensures stable burner performance in demanding mechanical environments.
Commercial Benefits for Contractors
- System Compatibility: Specifically designed for seamless integration with S89C/E/F and S87 series ignition controls.
- Service-First Engineering: All wiring terminals, pilot outlets, and pressure adjustments are top-accessible, significantly reducing time spent on the manifold.
- Flexible Installation: Supports a 0 to 90-degree mounting orientation from the upright position, including vertical mounting for tight cabinets.
- Stable Regulation: The slow opening valve prevents hard ignitions and burner flashbacks, extending the life of the heat exchanger.
- Industry Certified: UL recognized and CSA certified, ensuring code compliance for commercial and residential retrofits.
Common Questions
Is the VR8205N8829T compatible with standing pilot systems?
No, this is a direct ignition gas valve designed for HSI/DSI systems. It does not include a pilot gas supply or thermocouple connection required for standing pilot assemblies.
Can I use this gas valve for Propane (LP) applications?
Yes, while factory-configured for natural gas, it is field-convertible to propane using a Natural to LP conversion kit. Always verify manifold pressure with a manometer after conversion.
What is the purpose of the 'slow opening' feature?
The slow opening mechanism allows for a controlled initial gas flow to ensure a smooth light-off before reaching the full manifold pressure, reducing mechanical stress on the system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
