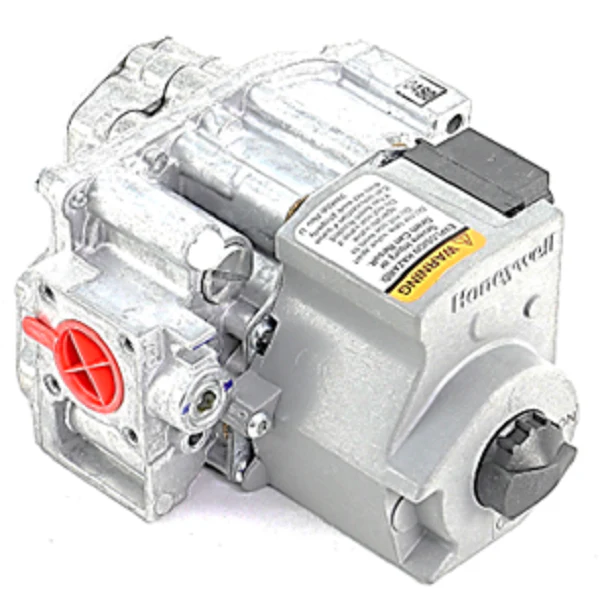

Resideo VR8205C1024 Valve
The Resideo VR8205C1024 is a professional-grade step opening gas valve engineered for 1/2" NPT configurations in high-efficiency gas-fired appliances. As a direct ignition dual automatic combination valve, it integrates a manual valve, two automatic operators, and a precise pressure regulator into a single compact housing. Rated for 24VAC systems, this single stage gas control is purpose-built for compatibility with both hot surface ignition (HSI) and direct spark ignition (DSI) modules. With a capacity range of 20 to 200 CFH and a 1/2 PSI pressure rating, it provides reliable performance for residential and light commercial equipment.
This technician-preferred HVAC replacement gas valve features a factory-set 3.5" WC full rate and a 1.2" WC step regulator setting, ensuring smooth burner ignition and stable combustion. For field diagnostics, the unit includes 1/8" NPT pressure tappings with plugs accessible from the top. Its straight-through body pattern and 1/4" quick-connect male terminals allow for streamlined manifold integration and wiring. Designed for versatile mounting, the VR8205C1024 can be installed at any orientation from 0 to 90 degrees relative to the upright position, including vertical applications.
Key Benefits- Dual Safety Shutoff: Meets stringent codes with two solenoid-operated automatic valves for redundant safety during the heating cycle.
- Precise Regulation: The step opening characteristic reduces ignition noise and ensures a controlled "soft-start" for the burner assembly.
- Versatile Compatibility: Native Natural Gas operation with available field conversion kits for Liquid Propane (LP) applications.
- Service-Friendly Design: All adjustments, wiring terminals, and pressure taps are located on the top of the control for easy access in tight vestibules.
- Is this valve compatible with intermittent pilot systems? No, the Resideo VR8205C1024 is specifically designed for direct ignition systems (HSI/DSI) and does not include a pilot outlet.
- Can I mount this valve vertically? Yes, this combination gas control is rated for mounting in any direction from 0 to 90 degrees from the upright position.
- What is the purpose of the 1.2" WC step setting? The step regulator provides a lower initial gas pressure to ensure a quiet, reliable light-off before shifting to the full manifold pressure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $228.64
-65%$228.64
$80.02Resideo VR8205C1024 Valve
The Resideo VR8205C1024 is a professional-grade step opening gas valve engineered for 1/2" NPT configurations in high-efficiency gas-fired appliances. As a direct ignition dual automatic combination valve, it integrates a manual valve, two automatic operators, and a precise pressure regulator into a single compact housing. Rated for 24VAC systems, this single stage gas control is purpose-built for compatibility with both hot surface ignition (HSI) and direct spark ignition (DSI) modules. With a capacity range of 20 to 200 CFH and a 1/2 PSI pressure rating, it provides reliable performance for residential and light commercial equipment.
This technician-preferred HVAC replacement gas valve features a factory-set 3.5" WC full rate and a 1.2" WC step regulator setting, ensuring smooth burner ignition and stable combustion. For field diagnostics, the unit includes 1/8" NPT pressure tappings with plugs accessible from the top. Its straight-through body pattern and 1/4" quick-connect male terminals allow for streamlined manifold integration and wiring. Designed for versatile mounting, the VR8205C1024 can be installed at any orientation from 0 to 90 degrees relative to the upright position, including vertical applications.
Key Benefits- Dual Safety Shutoff: Meets stringent codes with two solenoid-operated automatic valves for redundant safety during the heating cycle.
- Precise Regulation: The step opening characteristic reduces ignition noise and ensures a controlled "soft-start" for the burner assembly.
- Versatile Compatibility: Native Natural Gas operation with available field conversion kits for Liquid Propane (LP) applications.
- Service-Friendly Design: All adjustments, wiring terminals, and pressure taps are located on the top of the control for easy access in tight vestibules.
- Is this valve compatible with intermittent pilot systems? No, the Resideo VR8205C1024 is specifically designed for direct ignition systems (HSI/DSI) and does not include a pilot outlet.
- Can I mount this valve vertically? Yes, this combination gas control is rated for mounting in any direction from 0 to 90 degrees from the upright position.
- What is the purpose of the 1.2" WC step setting? The step regulator provides a lower initial gas pressure to ensure a quiet, reliable light-off before shifting to the full manifold pressure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
