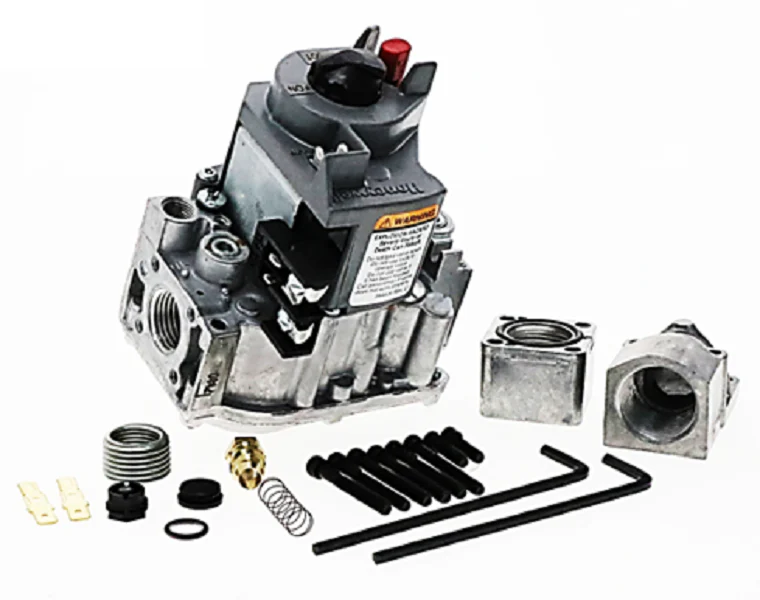

Resideo VR8200A2744 Valve
The Resideo VR8200A2744 is a professional-grade standing pilot gas valve engineered for 24VAC gas-fired appliances. This dual automatic combination valve features a 1/2" NPT inlet and outlet, delivering a regulated 3.5" WC output for consistent manifold pressure. With a high-performance gas valve BTU capacity ranging from 20,000 to 200,000 BTU/hr, it serves as a versatile Honeywell gas valve replacement for a variety of residential and light commercial equipment. The integrated adjustable servo regulator ensures stable operation even during significant supply fluctuations, while the compact straight-through body pattern allows for easy mounting in tight furnace or boiler cabinets. This standard opening valve includes a factory-packed LP conversion kit and multiple flange and bushing adapters (including 3/4" straight/angle flanges and a 1/2"x3/8" reducer) to streamline field installation for any HVAC technician. Standard 1/4" male quick-connect terminals and top-accessible pressure taps simplify both wiring and diagnostic testing.
Key Benefits:- Precise Pressure Control: Features an adjustable servo regulator set to 3.5" WC for stable, efficient burner performance.
- Universal Field Versatility: Includes an LP gas conversion kit and comprehensive flange and reducer bushing sets for immediate onsite adaptation.
- Enhanced Serviceability: All wiring connections, pressure taps, and pilot adjustments are located on the top of the control for quick access.
- Safety Compliant: Dual solenoid and diaphragm operators meet strict codes for dual safety shut-off in standing pilot systems.
- Flexible Mounting: Qualified for installation from 0 to 90 degrees in any direction from the upright knob position.
How do I convert the Resideo VR8200A2744 from Natural Gas to Propane?
Use the included LP conversion kit (Part No. 393691). Ensure the regulator spring and adjustment screw are replaced by a licensed HVAC contractor to maintain the correct manifold pressure.
Is this valve compatible with intermittent pilot systems?
No, the VR8200A2744 is specifically designed for continuous pilot dual automatic operation and is not a substitute for intermittent or direct spark ignition valves.
Can I use this gas valve for a high-output boiler?
This unit supports up to 200,000 BTU/hr. For commercial gas valve applications exceeding this capacity, check the appliance’s specific cfh requirements against the VR8200 sequence technical limits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $148.57
-65%$148.57
$52.00Resideo VR8200A2744 Valve
The Resideo VR8200A2744 is a professional-grade standing pilot gas valve engineered for 24VAC gas-fired appliances. This dual automatic combination valve features a 1/2" NPT inlet and outlet, delivering a regulated 3.5" WC output for consistent manifold pressure. With a high-performance gas valve BTU capacity ranging from 20,000 to 200,000 BTU/hr, it serves as a versatile Honeywell gas valve replacement for a variety of residential and light commercial equipment. The integrated adjustable servo regulator ensures stable operation even during significant supply fluctuations, while the compact straight-through body pattern allows for easy mounting in tight furnace or boiler cabinets. This standard opening valve includes a factory-packed LP conversion kit and multiple flange and bushing adapters (including 3/4" straight/angle flanges and a 1/2"x3/8" reducer) to streamline field installation for any HVAC technician. Standard 1/4" male quick-connect terminals and top-accessible pressure taps simplify both wiring and diagnostic testing.
Key Benefits:- Precise Pressure Control: Features an adjustable servo regulator set to 3.5" WC for stable, efficient burner performance.
- Universal Field Versatility: Includes an LP gas conversion kit and comprehensive flange and reducer bushing sets for immediate onsite adaptation.
- Enhanced Serviceability: All wiring connections, pressure taps, and pilot adjustments are located on the top of the control for quick access.
- Safety Compliant: Dual solenoid and diaphragm operators meet strict codes for dual safety shut-off in standing pilot systems.
- Flexible Mounting: Qualified for installation from 0 to 90 degrees in any direction from the upright knob position.
How do I convert the Resideo VR8200A2744 from Natural Gas to Propane?
Use the included LP conversion kit (Part No. 393691). Ensure the regulator spring and adjustment screw are replaced by a licensed HVAC contractor to maintain the correct manifold pressure.
Is this valve compatible with intermittent pilot systems?
No, the VR8200A2744 is specifically designed for continuous pilot dual automatic operation and is not a substitute for intermittent or direct spark ignition valves.
Can I use this gas valve for a high-output boiler?
This unit supports up to 200,000 BTU/hr. For commercial gas valve applications exceeding this capacity, check the appliance’s specific cfh requirements against the VR8200 sequence technical limits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
