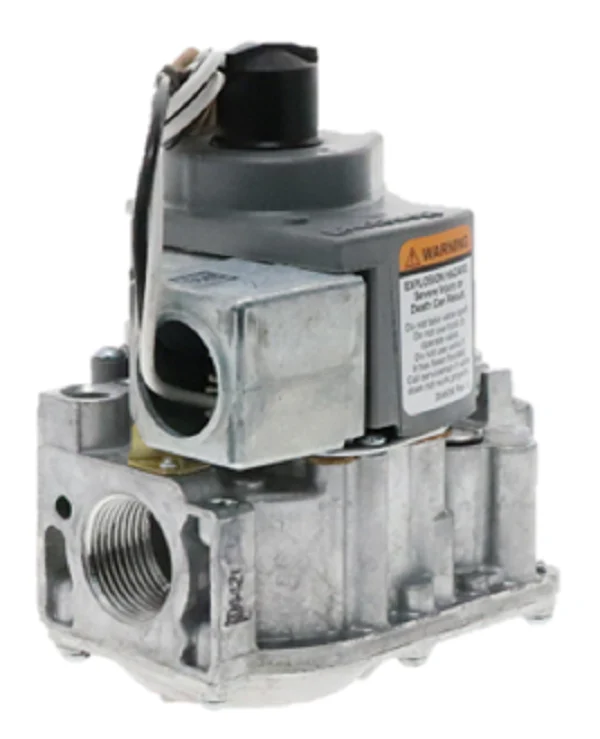

Resideo VR4305M4532 Valve
The Resideo VR4305M4532 Valve is a professional-grade, 120V dual direct ignition gas valve engineered for precision fuel regulation in high-capacity gas-fired appliances. Designed as a straight-through combination gas control, this unit manages 30,000 to 415,000 BTU/hr natural gas applications with a standard 3.5" WC regulator setting. This single-stage valve features a standard opening characteristic, ensuring consistent ignition performance for hot surface ignition (HSI) and direct spark ignition (DSI) systems. This 3/4" NPT dual automatic gas valve is a critical component for technicians servicing commercial boilers or high-output furnaces requiring a 1/2 psi pressure rating. The Resideo VR4305M4532 includes a 1/8" NPT pressure tapping with plug for accurate manifold pressure testing and comes equipped with an LP conversion kit and multiple reducer bushings (1/2"x3/8" and 3/4"x1/2") to streamline field installations across various manifold configurations. Its compact footprint and 0 to 90-degree mounting flexibility make it a versatile Honeywell gas valve replacement for tight mechanical spaces.
Key Benefits for Technicians- High-Capacity Throughput: Supports 30,000 to 415,000 BTU/hr, making it suitable for a wide range of residential and light commercial direct ignition systems.
- Field Versatility: Ships with an LP conversion kit and three reducer bushings for immediate adaptation to different fuel types and pipe sizes.
- Redundant Safety: Features a dual automatic operator design that meets strict safety codes for fuel shut-off in 120vac gas control applications.
- Precise Pressure Regulation: The integrated servo regulator maintains a consistent 3.5" WC output despite fluctuations in inlet supply pressure.
- Streamlined Installation: Designed with a straight-through body pattern and top-accessible wiring and adjustments to reduce time on the job site.
Is the Resideo VR4305M4532 compatible with both HSI and DSI systems?
Yes, this combination gas control is specifically designed for 120V hot surface and direct spark ignition modules used in modern high-efficiency appliances.
Can this valve be converted for use with Liquid Propane (LP)?
Yes. While factory-set for natural gas, the package includes a Resideo LP conversion kit to allow for safe use with propane systems in the field.
What should I do if the burner fails to ignite despite a call for heat?
First, verify 120vac at the valve terminals. If power is present but the valve does not open, check the manifold pressure at the 1/8" tapping. Ensure the manual knob is in the 'ON' position and the direct ignition module is sending the proper signal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
