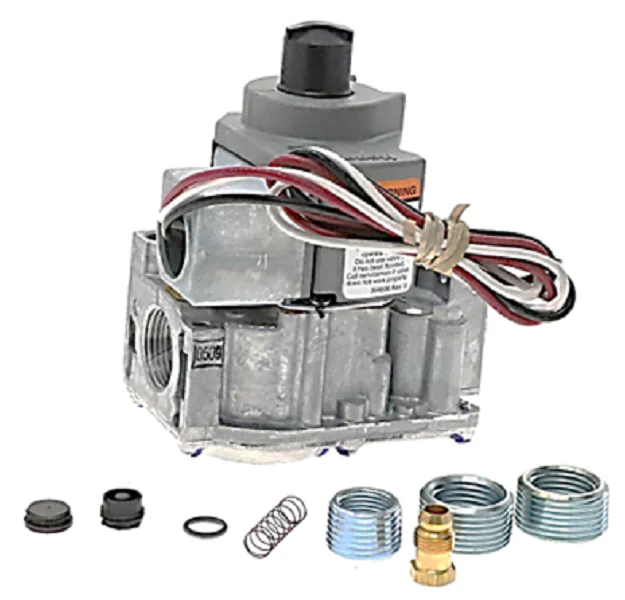

Resideo VR4304M4519 Valve
The Resideo VR4304M4519 is a technical-grade intermittent pilot combination gas control designed for demanding 120 Vac gas-fired appliances. This dual intermittent pilot gas valve features a straight-through body pattern with a 3/4-inch x 3/4-inch inlet and outlet, optimized for systems with a broad heating capacity ranging from 30,000 to 415,000 BTU/hr. Engineered for high-output boiler and furnace applications, it employs an adjustable servo regulator to maintain a steady 3.5" w.c. manifold pressure, ensuring peak combustion efficiency despite supply line fluctuations. This unit integrates two automatic operators; the first is solenoid-operated for immediate response to thermostat calls, while the second is diaphragm-assisted for redundant safety shutoff compliance. The compact design allows for top-down access to all wiring terminals, pilot adjustments, and pressure taps, simplifying field service. Each VR4304M4519/U valve includes a natural gas to LP conversion kit and reducer bushings, providing the versatile compatibility required for various HVAC gas valve replacement scenarios in residential and light commercial settings.
Key Benefits for Contractors- Wide Application Range: High BTU capacity of up to 415,000 BTUh makes this 3/4 inch gas control suitable for heavy-duty residential equipment.
- Precise Pressure Regulation: Features an adjustable servo regulator that maintains a consistent 3.5" w.c. setting for stable HVAC burner performance.
- Broad Compatibility: Directly interfaces with S8600 series ignition modules and S90A/B controllers, streamlining intermittent pilot system repairs.
- Fast Field Conversion: Includes a propane conversion kit and multiple reducer bushings (3/4" to 1/2" and 1/2" to 3/8") for immediate adaptability.
- Space-Efficient Design: Compact footprint with all 1/4" quick-connect terminals and adjustments located on the top for easier installation in tight cabinets.
Is the VR4304M4519 compatible with LP gas applications?
Yes. While factory-set for natural gas, this control comes standard with a natural gas to LP conversion kit. Field technicians can swap the regulator spring and hardware to accommodate liquid propane requirements.
Which ignition modules work with this Resideo gas valve?
This 120V valve is specifically designed for use with intermittent pilot ignition modules, including the S86F, S86H, S860D, S8600F, S8600H, and S8610 models.
Does this valve meet dual safety shutoff requirements?
Correct. The VR4304M4519 includes two automatic valves (solenoid and diaphragm operated) to provide the safety shutoff redundancy required by modern mechanical codes.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $349.61
-65%$349.61
$122.36Resideo VR4304M4519 Valve
The Resideo VR4304M4519 is a technical-grade intermittent pilot combination gas control designed for demanding 120 Vac gas-fired appliances. This dual intermittent pilot gas valve features a straight-through body pattern with a 3/4-inch x 3/4-inch inlet and outlet, optimized for systems with a broad heating capacity ranging from 30,000 to 415,000 BTU/hr. Engineered for high-output boiler and furnace applications, it employs an adjustable servo regulator to maintain a steady 3.5" w.c. manifold pressure, ensuring peak combustion efficiency despite supply line fluctuations. This unit integrates two automatic operators; the first is solenoid-operated for immediate response to thermostat calls, while the second is diaphragm-assisted for redundant safety shutoff compliance. The compact design allows for top-down access to all wiring terminals, pilot adjustments, and pressure taps, simplifying field service. Each VR4304M4519/U valve includes a natural gas to LP conversion kit and reducer bushings, providing the versatile compatibility required for various HVAC gas valve replacement scenarios in residential and light commercial settings.
Key Benefits for Contractors- Wide Application Range: High BTU capacity of up to 415,000 BTUh makes this 3/4 inch gas control suitable for heavy-duty residential equipment.
- Precise Pressure Regulation: Features an adjustable servo regulator that maintains a consistent 3.5" w.c. setting for stable HVAC burner performance.
- Broad Compatibility: Directly interfaces with S8600 series ignition modules and S90A/B controllers, streamlining intermittent pilot system repairs.
- Fast Field Conversion: Includes a propane conversion kit and multiple reducer bushings (3/4" to 1/2" and 1/2" to 3/8") for immediate adaptability.
- Space-Efficient Design: Compact footprint with all 1/4" quick-connect terminals and adjustments located on the top for easier installation in tight cabinets.
Is the VR4304M4519 compatible with LP gas applications?
Yes. While factory-set for natural gas, this control comes standard with a natural gas to LP conversion kit. Field technicians can swap the regulator spring and hardware to accommodate liquid propane requirements.
Which ignition modules work with this Resideo gas valve?
This 120V valve is specifically designed for use with intermittent pilot ignition modules, including the S86F, S86H, S860D, S8600F, S8600H, and S8610 models.
Does this valve meet dual safety shutoff requirements?
Correct. The VR4304M4519 includes two automatic valves (solenoid and diaphragm operated) to provide the safety shutoff redundancy required by modern mechanical codes.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
