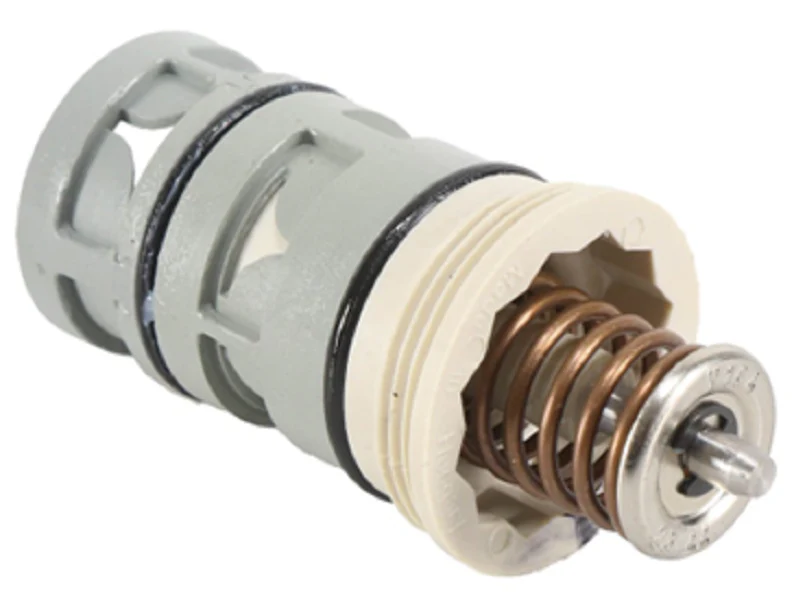

Resideo VCZZ6432 Valve
Upgrade or restore your hydronic system with the Resideo VCZZ6432, a high-performance 3-way valve cartridge engineered for VC series zone valves. Designed for professional HVACR contractors, this replacement cartridge is the industry standard for rebuilding Honeywell VC series valve bodies without the need for extensive repiping. It features a stainless steel stem and a travel distance of 0.4 inches, ensuring precise equal percentage flow control in both diverting and mixing applications.
The VCZZ6432 is built to withstand the rigors of residential and light commercial hydronic heating and cooling, offering a static pressure rating of 300 psig and handling fluid temperatures up to 203°F. By installing this VC series cartridge, you maintain the high Cv rating required for efficient zone distribution while preventing water hammer through its advanced internal design. Whether you are performing routine maintenance or a total system overhaul, this component ensures smooth operation and consistent temperature regulation across all zones.
Key Benefits:- Precise Flow Control: Engineered for equal percentage flow characteristics to optimize heat transfer efficiency in hydronic circuits.
- Universal Compatibility: Fits all 3-way Resideo and Honeywell VC series valve bodies, allowing for a 6000-series rebuild to factory specifications.
- Heavy-Duty Construction: Features a stainless steel stem and high-grade EPDM O-rings for reliable sealing under high pressure (up to 300 psig).
- Cost-Effective Maintenance: Replaces the internal valve cartridge only, eliminating the labor and material costs of replacing the entire valve assembly.
- Diverting and Mixing: Fully rated for both diverting and mixing configurations in complex HVAC zoning applications.
- Does this cartridge fit 2-way VC valves? No, the VCZZ6432 is specifically a 6000-series 3-way cartridge; 2-way bodies require the 1000-series (e.g., VCZZ1400).
- What is the maximum operating pressure? This cartridge is rated for a static pressure of 300 psig (20 bar) and a maximum operating differential of 60 psi.
- Can I use this with glycol solutions? Yes, it is compatible with water and glycol solutions up to a 60% concentration for chilled water or heating applications.
- How do I identify the spring force? This model features a silver spring, indicating a standard 14 lbf. force suitable for standard on-off flow control.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $90.69
-65%$90.69
$31.74Resideo VCZZ6432 Valve
Upgrade or restore your hydronic system with the Resideo VCZZ6432, a high-performance 3-way valve cartridge engineered for VC series zone valves. Designed for professional HVACR contractors, this replacement cartridge is the industry standard for rebuilding Honeywell VC series valve bodies without the need for extensive repiping. It features a stainless steel stem and a travel distance of 0.4 inches, ensuring precise equal percentage flow control in both diverting and mixing applications.
The VCZZ6432 is built to withstand the rigors of residential and light commercial hydronic heating and cooling, offering a static pressure rating of 300 psig and handling fluid temperatures up to 203°F. By installing this VC series cartridge, you maintain the high Cv rating required for efficient zone distribution while preventing water hammer through its advanced internal design. Whether you are performing routine maintenance or a total system overhaul, this component ensures smooth operation and consistent temperature regulation across all zones.
Key Benefits:- Precise Flow Control: Engineered for equal percentage flow characteristics to optimize heat transfer efficiency in hydronic circuits.
- Universal Compatibility: Fits all 3-way Resideo and Honeywell VC series valve bodies, allowing for a 6000-series rebuild to factory specifications.
- Heavy-Duty Construction: Features a stainless steel stem and high-grade EPDM O-rings for reliable sealing under high pressure (up to 300 psig).
- Cost-Effective Maintenance: Replaces the internal valve cartridge only, eliminating the labor and material costs of replacing the entire valve assembly.
- Diverting and Mixing: Fully rated for both diverting and mixing configurations in complex HVAC zoning applications.
- Does this cartridge fit 2-way VC valves? No, the VCZZ6432 is specifically a 6000-series 3-way cartridge; 2-way bodies require the 1000-series (e.g., VCZZ1400).
- What is the maximum operating pressure? This cartridge is rated for a static pressure of 300 psig (20 bar) and a maximum operating differential of 60 psi.
- Can I use this with glycol solutions? Yes, it is compatible with water and glycol solutions up to a 60% concentration for chilled water or heating applications.
- How do I identify the spring force? This model features a silver spring, indicating a standard 14 lbf. force suitable for standard on-off flow control.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
