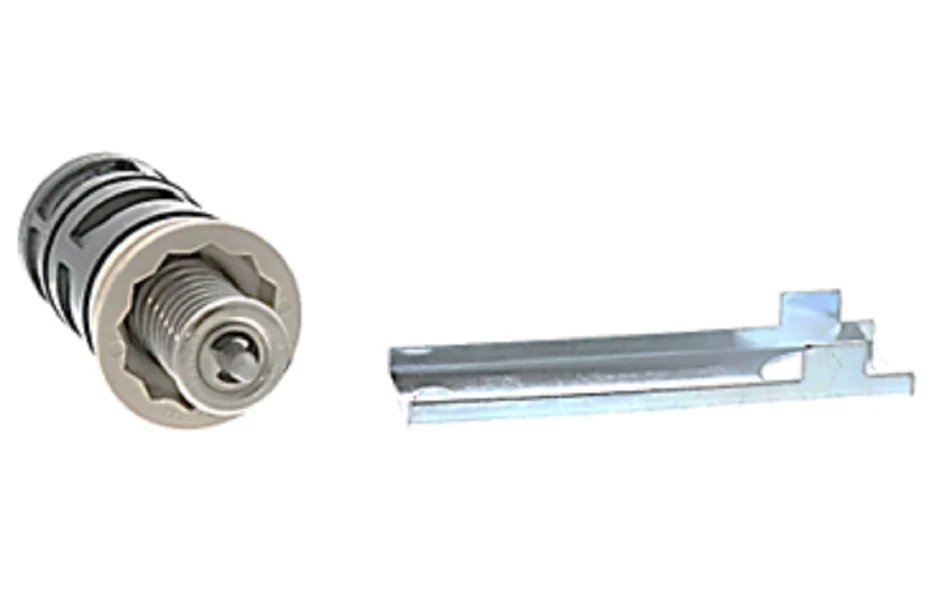

Resideo VCZZ6100 Replacement Cartridge
The Resideo VCZZ6100 Replacement Cartridge is a critical component for maintaining or restoring the performance of 3-way VC series valves. Engineered for hydronic control systems, this cartridge features a silver spring and is designed specifically for linear flow characteristics. It is fully compatible with 2-position actuators as well as fail-safe proportional actuators, ensuring precise modulation in both heating and cooling applications. The VCZZ6100 provides a field-serviceable solution, allowing technicians to replace internal components without removing the entire valve body from the piping. This model ensures a tight seal and reliable diversion or mixing functions within various HVAC configurations. The package includes a cartridge wrench, facilitating high-torque installation and removal in tight mechanical spaces. Utilizing genuine Resideo parts Ensures the pressure ratings and flow coefficients (Cv) remain within original equipment manufacturer specifications, preventing common issues like system hunting or premature actuator fatigue.
Key Benefits- Optimized Flow Control: Designed for linear flow response, providing predictable temperature control when paired with proportional actuators.
- Simplified Maintenance: Includes a dedicated cartridge wrench for efficient field replacement, reducing labor time and system downtime.
- Versatile Compatibility: Engineered for the entire VC series valve platform, supporting both mixing and diverting 3-way applications.
- Rugged Construction: Features a silver spring mechanism built to withstand the high cycle rates of modern hydronic zone control.
Is the VCZZ6100 compatible with 2-way VC valves?
No, the VCZZ6100 is specifically designed for 3-way VC series valves. Using this cartridge in a 2-way body will result in improper flow and potential system damage.
Does this cartridge support fail-safe actuators?
Yes, it is fully rated for use with fail-safe proportional actuators and 2-position (on/off) control signals.
Why is my valve leaking after cartridge installation?
Leaking usually occurs if debris is trapped in the valve seat or if the cartridge was not fully seated using the included wrench. Ensure the valve body is flushed before installing the new cartridge.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
