Resideo VCZZ3100 Replacement Cartridge

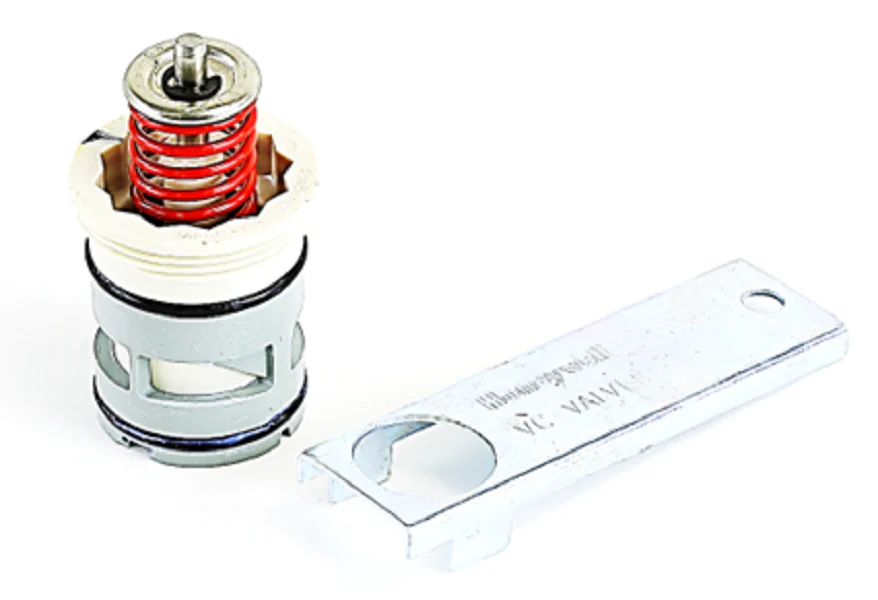

The Resideo VCZZ3100 Replacement Cartridge is a critical component for maintaining precise hydrological control in commercial and residential HVAC systems. Designed with a red spring, this cartridge provides linear flow characteristics, making it essential for integration with non-fail safe proportional actuators. When handling Honeywell VC series valve repair, technicians prioritize the VCZZ3100 for its ability to restore original factory specifications without replacing the entire valve body. The balanced valve design ensures high pressure close-off performance, effectively mitigating water hammer and ensuring quiet operation under varying load conditions. This kit includes the necessary cartridge wrench, allowing for efficient field replacement and reduced downtime. By utilizing EPDM O-rings and a durable construction, this cartridge maintains seal integrity in high-demand hydronic loops. Proper installation ensures optimized modulating valve control and long-term system stability.
Key Benefits for Technicians- Linear Flow Profile: Engineered specifically for 2-way and 3-way VC series zone valves using modulating actuators.
- High Close-off Pressure: Maintains system boundary integrity even in high-head pressure applications.
- Streamlined Installation: Included cartridge removal tool simplifies the swap-out process within tight mechanical spaces.
- Hydronic Compatibility: Robust internals are resistant to common glycol concentrations and water treatment chemicals.
Is the VCZZ3100 compatible with on/off actuators?
No, the red spring and linear flow geometry are specifically calibrated for proportional (modulating) actuators. Using this with an on/off actuator may result in suboptimal flow control.
Does this cartridge work for both 2-way and 3-way valve bodies?
Yes, the VCZZ3100 is the universal replacement insert for all VC series valve bodies requiring a linear flow characteristic.
How do I identify if I need the red spring or black spring cartridge?
The VCZZ3100 red spring is required for linear flow/proportional control, whereas the black spring (VCZZ1100) is used for quick-opening/on-off applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
