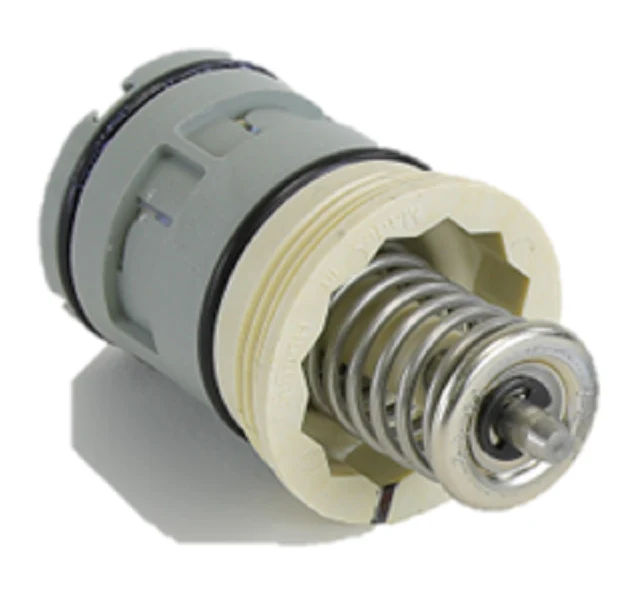

Resideo VCZZ1600 Replacement Cartridge
The Resideo VCZZ1600 Replacement Cartridge is a critical component for maintaining or repairing Honeywell standard 2-way VC series valves. Designed specifically for hydronic applications, this cartridge features a silver spring and an equal percentage flow characteristic, making it the correct choice for systems requiring precise control with fail-safe proportional actuators. By replacing the internal assembly rather than the entire valve body, contractors can significantly reduce downtime and labor costs during HVAC valve maintenance. The low-flow design ensures stability in modulating systems, preventing the short-cycling and hunting often associated with oversized trim. Constructed for longevity in closed-loop systems, the VCZZ1600 provides a reliable seal and smooth plug travel. Each unit includes a dedicated cartridge wrench to facilitate rapid field replacement without requiring specialized extractors. Utilizing this modulating valve cartridge ensures your low-flow hydronic control remains within design specifications for peak efficiency.
Key Benefits
- Direct Compatibility: Engineered specifically for VC series 2-way valve bodies ensuring a perfect fit and dependable shut-off.
- Precision Control: The equal percentage flow curve provides linear control of heat output for better temperature regulation.
- Installation Efficiency: Includes a factory-matched cartridge removal tool to streamline the replacement process for service technicians.
- Optimized Performance: Features a high-tension silver spring designed to work in tandem with 0-10V or 4-20mA proportional actuators.
- Cost-Effective Maintenance: Avoids the need to break pipe joints or sweat new fittings by refreshing the internal valve mechanics.
Common Questions
Can I use the VCZZ1600 in a 3-way valve body?
No, this cartridge is specifically designed for 2-way hydronic valves. Using it in a 3-way body will cause bypass issues and improper flow regulation.
Does this cartridge work with on/off actuators?
While it may fit, the VCZZ1600 is optimized for modulating control applications. For standard on/off service, a higher flow (Cv) cartridge is typically recommended.
What is the purpose of the silver spring compared to other colors?
Spring color denotes the specific application and tension. The silver spring is engineered for specific differential pressure ratings and compatibility with fail-safe proportional actuators.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
