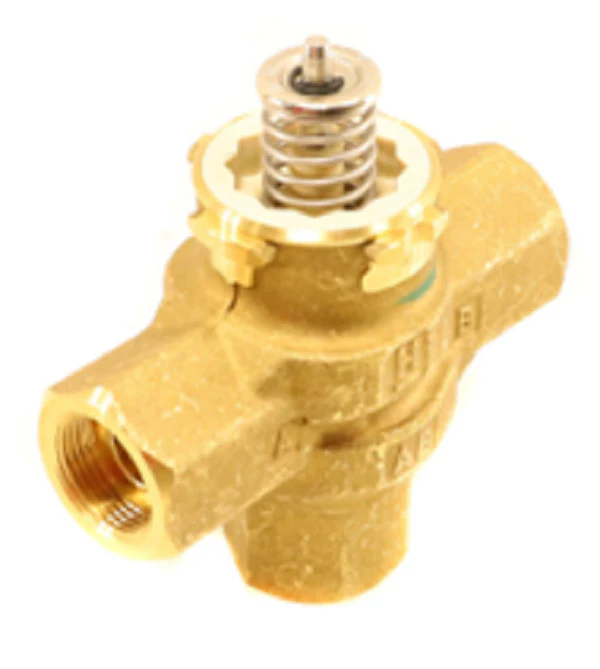

Resideo VCZMD6100 Valve
The Resideo VCZMD6100 Valve is a robust 1/2" inverted flare three-way cartridge cage valve designed specifically for demanding hydronic zone control in both domestic and light commercial HVACR applications. Built with a bronze body and a high-grade stainless steel stem, this balanced valve assembly manages the flow of hot or chilled water with up to 60% glycol concentration. Engineered for mixing or diverting service, it features a 3.2 Cv rating and a linear flow characteristic to ensure precise temperature regulation. The internal design utilizes a 6000-series cartridge with EPDM O-ring seals, providing a reliable 60 psi close-off pressure and a static pressure rating of up to 300 psi. This stem up to close A port configuration is fully compatible with all VC series on/off actuators, allowing for actuator removal without draining the entire system, which significantly reduces downtime for busy contractors during routine maintenance or cartridge replacement.
Key Benefits- Simplified Serviceability: The unique cartridge cage valve design allows for quick replacement of internal moving parts, effectively rebuilding the valve to factory specifications without removing the bronze body from the piping.
- High Close-Off Performance: Provides a consistent 60 psi close-off rating, ensuring positive shut-off and preventing unwanted bypass in high-differential systems.
- Versatile Hydronic Compatibility: Rated for fluid temperatures ranging from 34°F to 203°F, making it suitable for a wide array of chilled water and hot water loops.
- Leak-Proof Connections: The 1/2 inch inverted flare connection ensures a secure, high-pressure seal that is easy to install and maintain in tight mechanical spaces.
Can the VCZMD6100 be used for both mixing and diverting applications?
Yes, the Resideo VC series three-way valves are designed to be piped for either mixing or diverting applications depending on the system requirements.
Is a special tool required to replace the valve cartridge?
While a cartridge changing tool (part number WV108) is often recommended for maximum efficiency, the 1000 and 6000 series cartridges can be replaced during standard servicing to restore the valve's performance.
Do I need to drain the loop to install a new actuator on this valve?
No, the on/off VC style actuator mounts with a twist-lock mechanism that allows for installation or removal without breaching the hydronic circuit or draining the system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
