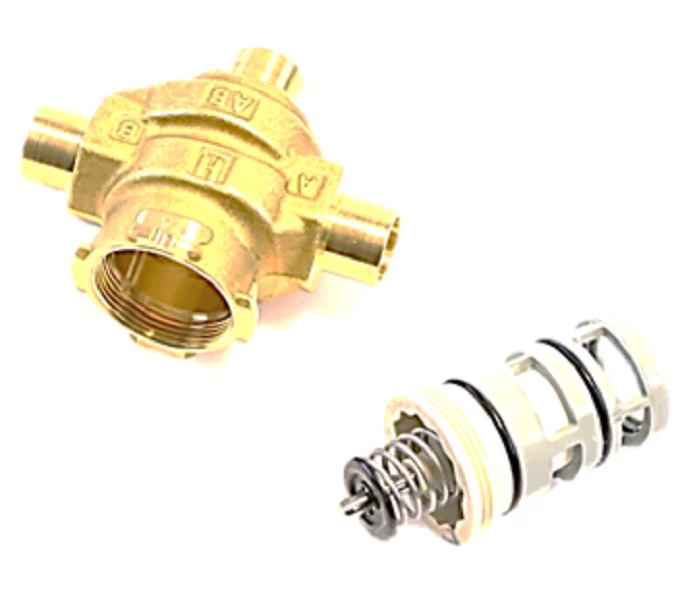

Resideo VCZMA6000 Valve
The Resideo VCZMA6000 Valve is a professional-grade 3-way hydronic zone valve designed for precision flow control in closed-loop heating and cooling systems. Built for heavy-duty domestic and light commercial service, this 1/2 inch sweat connection body utilizes a balanced cartridge design that enables high close-off pressure up to 60 psi (4 bar) without the risk of water hammer. The 4.2 Cv flow capacity and quick open flow characteristics ensure optimal performance in mixing or diverting applications, making it a reliable choice for fan coil units, baseboards, and radiators.
This valve body is engineered for compatibility with all Resideo VC series actuators, featuring a quick-release mechanism that allows for one-handed head installation or replacement without draining the system. The 3-way cartridge cage valve construction uses a bronze body and a durable EPDM-piston assembly capable of handling fluid temperatures up to 203°F (95°C) and glycol concentrations up to 60%. For high-performance hydronic manifold or boiler system integrations, the Resideo VCZMA6000 provides a robust solution for multi-zone environmental control.
Key Benefits- Efficient System Servicing: The cartridge-style design allows internal parts to be replaced in minutes using the included removal tool, restoring the valve to factory specs without cutting into the lines.
- Universal Compatibility: Seamlessly pairs with 24V or 120V VC series actuators (SPST, SPDT, or modulating) for maximum flexibility on the job site.
- Balanced Flow Control: The internal piston design ensures the valve close-off rating remains consistent regardless of the differential pressure across the ports.
- Quiet Operation: Sinusoidal actuator travel combined with a 6-second quick-opening cycle eliminates noise and protects copper piping from stress.
Can this valve be used for both mixing and diverting in a hydronic system?
Yes, the A-AB-B body pattern is specifically designed for dual-purpose use. In diverting applications, fluid enters through the bottom port (AB) and exits through ports A or B. For mixing, fluid enters through A or B and exits through AB.
Is the actuator head included with the VCZMA6000 model?
This specific part is the valve body and cartridge assembly. While it is fully compatible with the Honeywell Resideo 6000 series actuators, the powerhead must be sourced separately if a full replacement is required.
Can I install this valve in any orientation?
The valve body can be mounted in any position; however, for optimal performance and protection of the electronics, it is recommended to avoid installing the actuator head below the horizontal plane to prevent moisture buildup.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
