Resideo VCZBD1100 Valve

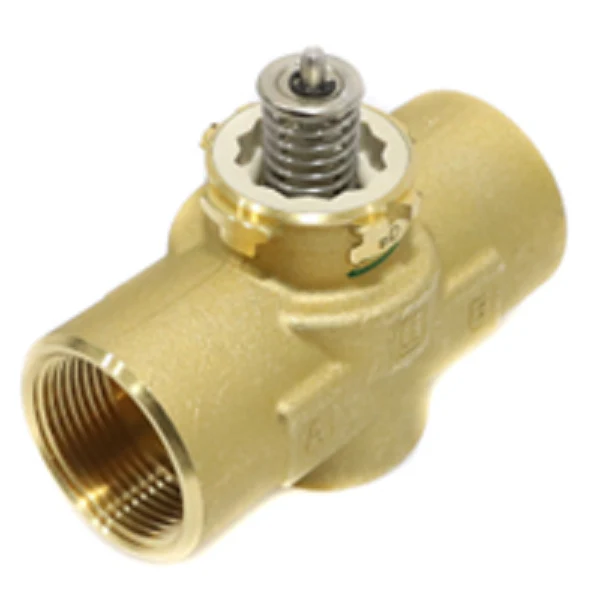

The Resideo VCZBD1100 Valve is a robust 1 1/4" NPT two-way cartridge cage valve designed specifically for demanding hydronic heating and cooling systems. Built with a heavy-duty bronze body and a stainless steel stem, this assembly provides long-term reliability in zone control for fan coils, baseboards, and convectors. The linear flow characteristic ensures precise fluid regulation with a 7 Cv capacity, maintaining high performance even in systems utilizing up to 60% glycol. With a 60 psi close-off pressure and a static pressure rating of 300 psi, this 1000-series valve is engineered to prevent water hammer and operate silently under varying load conditions.
For technicians, the Resideo VCZBD1100 offers significant installation advantages. The EPDM O-ring seals and Ryton/Noryl internal cartridge are field-replaceable, allowing you to rebuild the valve to factory-new condition without cutting into the pipework. This unit is optimized for on/off VC style actuators, requiring no tools for actuator removal, which simplifies maintenance in tight mechanical spaces. Whether managing chilled water or hot water up to 203°F, this 1.25 inch NPT valve provides the durable, bi-directional flow control required for professional HVACR applications.
Key Benefits- Field-Serviceable Design: Replaceable cartridge assembly allows for full valve rebuilding without system drainage or pipe removal.
- High Glycol Compatibility: Engineered to handle up to 60% glycol concentration for versatile chilled and hot water applications.
- Tool-Free Actuator Mounting: Quick-connect design allows on/off actuators to be swapped or serviced in seconds without specialized tools.
- Superior Close-off: Rated at 60 psi differential pressure to ensure leak-free shutoff across diverse zoning configurations.
- Corrosion Resistance: Features a bronze construction and stainless steel stem for maximum durability in harsh hydronic environments.
Does the system need to be drained to replace the actuator?
No. The VC series design allows the actuator head to be removed or replaced without affecting the integrity of the water system or requiring any drainage.
Can this valve be used for steam applications?
No. The VCZBD1100 is specifically designed for hydronic systems (water or glycol mixtures) and is not rated for steam media.
What type of flow control does this model provide?
This model features a linear flow characteristic, making it ideal for standard two-position (on/off) zoning control rather than equal percentage modulating applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
