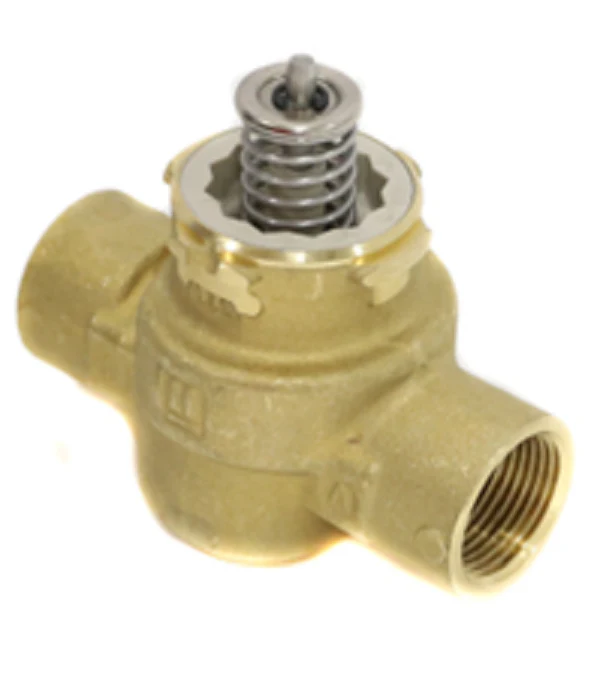

Resideo VCZAL1100 Valve
The Resideo VCZAL1100 Valve is a robust 3/4 inch NPT 2-way hydronic zone valve assembly engineered for domestic and light commercial HVAC applications. Designed with a bronze body and a stainless steel stem, this cartridge cage valve ensures reliable performance in systems utilizing chilled or hot water with up to a 60% glycol concentration. Featuring a linear flow characteristic and a 4.7 Cv capacity, it provides precise on/off flow control when paired with a compatible VC series actuator. The bi-directional installation capability and high 60 psi close-off pressure rating make it a versatile choice for high-pressure differential requirements up to 300 psi static. Maintenance is streamlined via the replaceable cartridge assembly, which utilizes EPDM O-ring seals and Noryl piston seats, allowing for field service without removing the valve body from the piping. This 1000-series model is built for two-position control, ensuring efficient zone control for localized heating and cooling demands.
Key Benefits for the Contractor- Field-Serviceable Design: The internal cartridge cage valve can be replaced quickly to restore factory-new performance without ever breaking into the pipe line.
- System Compatibility: Rated for a wide fluid temperature range of 34°F to 203°F, supporting both hydronic heating and chilled water systems.
- High Close-Off Strength: Maintains a 60# close-off pressure rating regardless of the specific Cv, preventing water hammer and leakage across zone boundaries.
- Durable Construction: Features EPDM rubber seals and a stainless steel stem for long-term resistance to high-glycol mixtures and chemical additives.
- Simple Actuation: Uses a VC style actuator with a quick-connect head that does not require system draindown for installation or removal.
- Can this valve be used in steam applications? No, this cartridge cage valve is specifically designed for water and glycol solutions and is not rated for steam use.
- Does the VCZAL1100 require a specific piping direction? No, 2-way VC series valve bodies allow for bi-directional flow, simplifying installation in tight mechanical closets.
- Is the replacement wrench included? Most Resideo VCZAL1100 assemblies include a cartridge installation wrench to facilitate faster service calls.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
