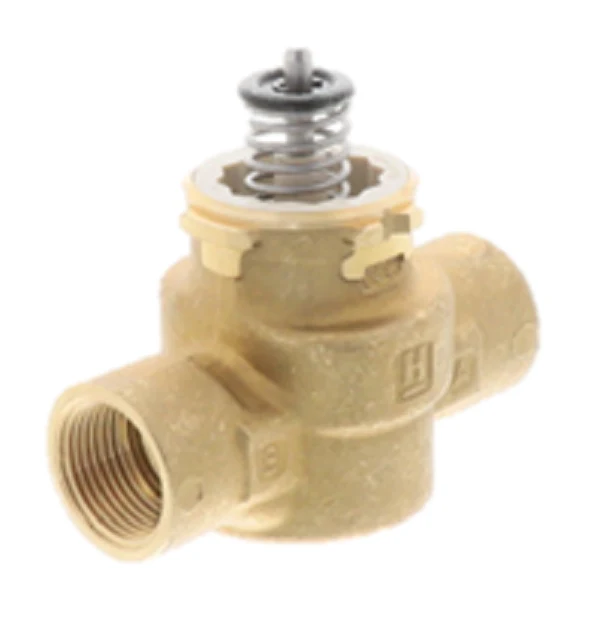

Resideo VCZAL1000 Valve
The Resideo VCZAL1000 is an industrial-grade 3/4 inch 2-way linear flow valve body engineered for precise hydronic control in residential and light commercial HVAC systems. Designed to manage the flow of hot or chilled water, this VC series valve assembly remains stable in demanding environments, supporting fluid temperatures from 34°F to 203°F and maintaining a maximum operating pressure of 300 PSI. Built with a rugged bronze body and a high-performance 6.3 Cv rating, it ensures high flow capacity while resisting water hammer through its unique balanced cartridge design.
For technicians, the VCZAL1000 offers unparalleled flexibility, featuring Female NPT threaded connections and a universal actuator interface. The internal cartridge is replaceable without removing the valve body from the line, and the any type actuator compatibility allows for seamless integration with on/off, floating, or modulating VC series heads. This 2-way hydronic valve is ideal for zone control, fan coil units, and radiator applications, providing a 60 PSI close-off rating that remains independent of the Cv for reliable shut-off performance.
Key Benefits
- High Flow Efficiency: Features a 6.3 Cv linear flow characteristic for optimal temperature regulation and system balance.
- Universal Compatibility: The AnyTypeAct design allows it to be paired with any 2-position or modulating VC series actuator.
- Field Serviceable: Quick-change cartridge assembly allows for internal rebuilds to factory-new specs without draining the entire system.
- Chemical Resistance: Rated for use with water containing up to 60% glycol concentration, suitable for diverse hydronic loops.
- Robust Construction: Bronze housing and stainless steel spindle provide long-term durability in high-pressure zoning valve applications.
Common Questions
Can I install a new actuator without draining the system?
Yes, the Resideo VC series design allows the actuator head to be removed and installed by hand without breaking the hydronic seal or draining the pipes.
What is the maximum differential pressure for this valve?
The VCZAL1000 is rated for a maximum differential pressure (close-off) of 60 PSI (4 bar), ensuring reliable operation even in systems with high-head pumps.
Does this valve support bi-directional flow?
Yes, the balanced cartridge design allows for bi-directional installation, providing more flexibility in tight mechanical rooms and piping configurations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
