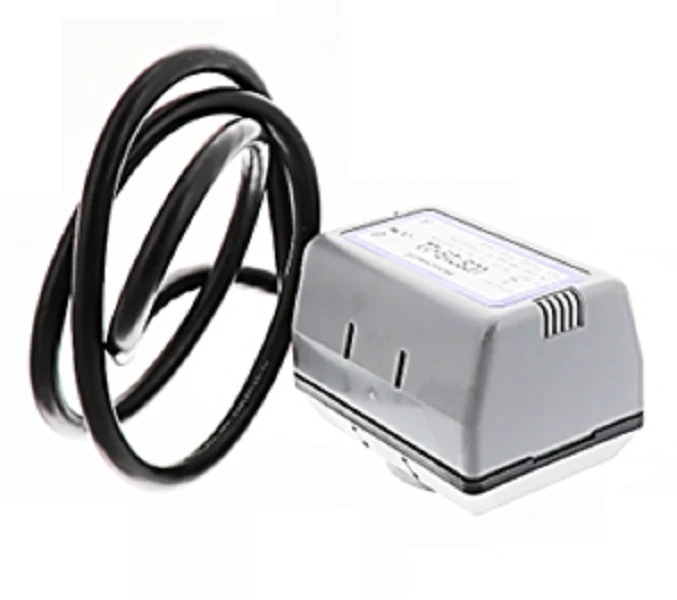

Resideo VC8715ZZ11 Actuator
The Resideo VC8715ZZ11 Actuator is a professional-grade 24VAC two-position valve actuator engineered for precise hydronic control in commercial and residential systems. Designed for use with VC1000 two-way valves or VC6000 three-way valves, this non-spring return actuator utilizes a direct-coupled mounting system for fast, tool-free installation. The unit features an SPST auxiliary switch for end-of-stroke signaling or equipment interlocking, ensuring high system integration. With a 60 PSI maximum close-off rating and a 39-inch lead cable, the VC8715ZZ11 provides reliable operation in high-differential pressure environments without the risk of water hammer. This Resideo valve actuator is the industry standard for on/off hydronic valve control, offering low power consumption and a rugged drive motor that minimizes field callbacks during HVAC zone valve maintenance.
Key Benefits- Universal Compatibility: Mounts directly to VC series valve bodies, eliminating the need for complex linkages or calibration.
- Integrated Auxiliary Switch: The built-in SPST switch allows for seamless dry-contact signaling to pumps or boilers.
- High Close-Off Force: Rated for up to 60 PSI, preventing leakage and bypass in high-head pressure applications.
- Low Power Draw: Efficient 24V motor reduces the load on the HVAC control transformer.
- Field Reliability: High-impact plastic construction protects internal gear trains from construction debris and moisture.
Is the Resideo VC8715ZZ11 a spring return model?
No, this is a non-spring return actuator. It remains in its last position upon a loss of power and requires a 24VAC signal to drive the valve open or closed.
Can I use this actuator with a three-way mixing valve?
Yes, the VC8715ZZ11 is fully compatible with VC6000 series three-way valves and VC1000 series two-way valves for diverted or mixed flow control.
What is the purpose of the 39-inch cable?
The pre-wired cable simplifies zonal valve wiring, providing ample length for routing to a nearby junction box or control board without needing proprietary connectors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
