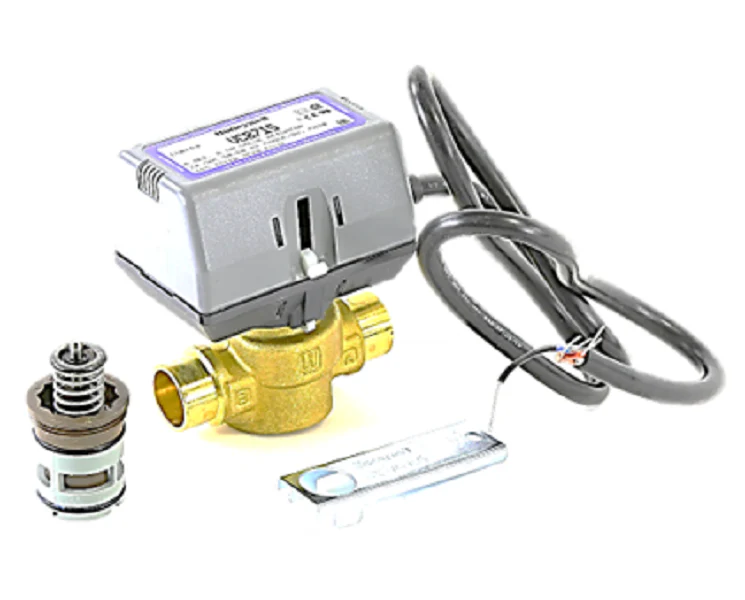

Resideo VC8715AM1000 Valve
The Resideo VC8715AM1000 is an industry-standard 2-way motorized zone valve engineered for precision control in primary hydronic systems, including fan coils, baseboards, and radiators. This series 80 assembly features a high-performance 5.8 Cv rating and a quick open flow characteristic, ensuring efficient throughput in both residential and light commercial applications. Built with a rugged bronze body and 1-inch (nominal 3/4-inch) sweat connections, the unit is rated for water and 50% glycol solutions. The 24V SPST actuator operates with a nominal 6-second timing, utilizing internal logic to consume power only when driving the valve to position, which effectively eliminates water hammer. With a 60 psi max close-off pressure and a 300 psi static pressure rating, this valve provides reliable shut-off in high-head circulator loops. The actuator head is removable without draining the loop, allowing for fast cartridge replacement or field service without system downtime.
Key Benefits:- High Flow Capacity: The 5.8 Cv rating ensures minimal pressure drop across the valve, optimizing pump head requirements.
- Serviceable Design: The quick-connect actuator allows for head replacement or cartridge service without the need to drain or breach the hydronic circuit.
- Reliable Close-Off: Engineered for a 60 psi max close-off pressure, preventing ghost flows and ensuring tight sealing in balanced systems.
- Chemical Compatibility: The bronze valve body and high-grade EPDM seals are safe for use with glycol solutions up to 50% concentration.
- Energy Efficient: The 24Vac on/off actuator features synchronous motor operation that minimizes power draw and prevents motor burnout through internal limit switches.
- Can the actuator be replaced without removing the valve body? Yes, the Resideo VC series is specifically designed so the actuator can be swapped or the cartridge replaced without cutting pipe or draining the system.
- Is this valve compatible with power-stealing thermostats? The series 80 actuator is designed for use with SPST controllers and can be used with many electronic thermostats, though a resistor may be needed for some power-stealing models.
- Can I install this in a glycol-heavy system? This valve is rated for water-glycol solutions up to a 50% ratio, making it suitable for systems requiring freeze protection.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
