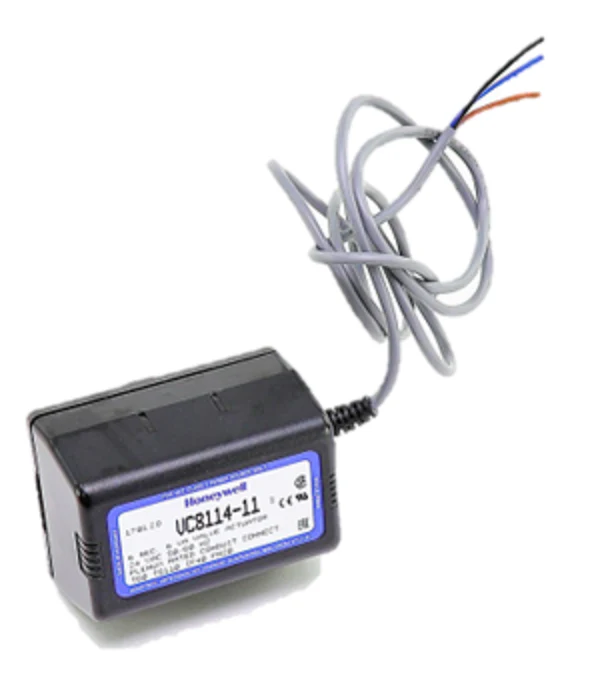

Resideo VC8114ZZ11 Actuator
The Resideo VC8111ZZ11 (often cross-referenced as VC8114ZZ11) is an essential 24VAC hydronic valve actuator engineered for reliable two-position control in commercial and residential HVAC systems. Designed as a non-spring return actuator, this unit provides precise open/close operation when paired with Honeywell VC Series bodies, including the 1000 Series 2-way and 6000 Series 3-way valves. For technicians in the field, the direct coupled mounting allows for a tool-free installation or swap-out without the need to drain the entire system, significantly reducing labor time during service calls. With a 60 psi maximum close-off rating, it effectively manages pressure differentials in fan coil units, baseboard radiators, and convectors. This SPST valve actuator features 3-wire logic (two-wire plus common) and comes equipped with a 5-foot plenum cable, ensuring compliance with fire safety codes for installations within air handling spaces.
Key Benefits for the Jobsite:- Direct Coupled Mounting: Simplifies the installation process and allows actuator replacement without system depressurization.
- High Close-Off Pressure: Engineering rated for 60 psi, ensuring a positive seal and preventing bleed-through in high-demand hydronic loops.
- Plenum-Rated Cable: The included 5-foot lead meets strict building codes for use in return air ceilings and enclosures.
- Universal Compatibility: Fits both VC1000 mixing and VC6000 diverting configurations for maximum inventory flexibility.
- Minimal Power Consumption: Efficient 6VA driving power requirement reduces the load on 24V control transformers.
What is the difference between this and the VC8111?
The VC8114ZZ11 specifically includes the 5ft plenum cable lead, whereas other models may feature quick-connect terminals or shorter leads. Functional performance and valve body compatibility remain identical across the VC8-series two-position line.
Can this be used for modulating applications?
No, this is a two-position (on/off) actuator utilizing SPST logic. For 0-10V or floating control, you must specify a different VC-series derivative designed for proportional signaling.
Is a mounting tool required?
Installation is accomplished via a manual twist-lock mechanism. No specialized tools are needed to secure the head to the valve body assembly.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
