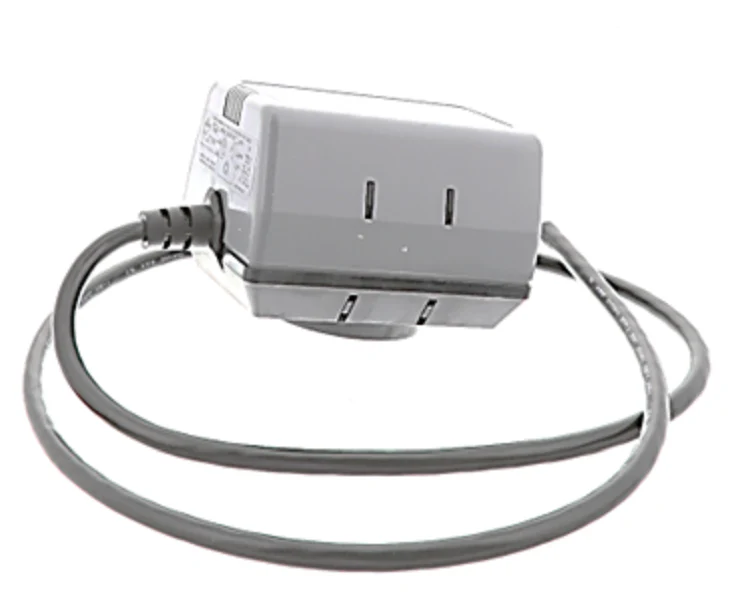

Resideo VC8111ZZ11 Actuator
The Resideo VC8111ZZ11 Actuator is a professional-grade, 24vac low voltage solution engineered for precise flow control in hydronic systems. This SPST two position valve actuator features a non spring return design, ensuring the valve remains in its last position during power loss to maintain system stability. Designed for versatile field application, it is fully compatible with VC1000 series two-way and VC6000 series three-way valves. The direct coupled mounting allows for a rapid, tool-free installation without the need to drain the system, while the 60psi maximum close rating provides reliable shut-off performance in demanding central heating and cooling applications, including fan coil units, radiators, and convectors. Equipped with a 39" cable and molded strain relief, this double insulated actuator offers the rugged durability and technical precision required by veteran contractors for efficient HVAC zone valve control and maintenance-free operation.
Key Benefits- High Close-Off Force: Provides a 60 psi close-off pressure rating to prevent leakage and ensure positive shut-off in high-pressure hydronic loops.
- System Continuity: The non spring return mechanism prevents sudden hydraulic shocks by maintaining the current valve state during power interruptions.
- Efficient Installation: Features direct coupled mounting for a quick "twist-lock" attachment to the valve body, significantly reducing labor time on the job site.
- Broad Compatibility: Seamlessly integrates with VC Series valves, supporting both mixing and diverting configurations for 2-way and 3-way applications.
- Enhanced Safety: The double insulated housing and plenum-rated 39-inch cable meet strict UL and CSA standards for residential and light commercial use.
Is the Resideo VC8111ZZ11 compatible with older Honeywell VC series bodies?
Yes, this actuator is designed as a direct replacement for the head on VC1000 and VC6000 series valve bodies, allowing for updates without repiping the entire assembly.
What is the typical opening time for this 24V actuator?
The Resideo VC8111ZZ11 features a nominal 6-second timing at 60 Hz, providing rapid response for on-off zone control in hydronic heating and cooling systems.
Can I manually operate the valve with this actuator installed?
Yes, the unit includes an integrated manual override lever and position indicator, allowing technicians to manually open or close the valve for system testing or emergency clearing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
