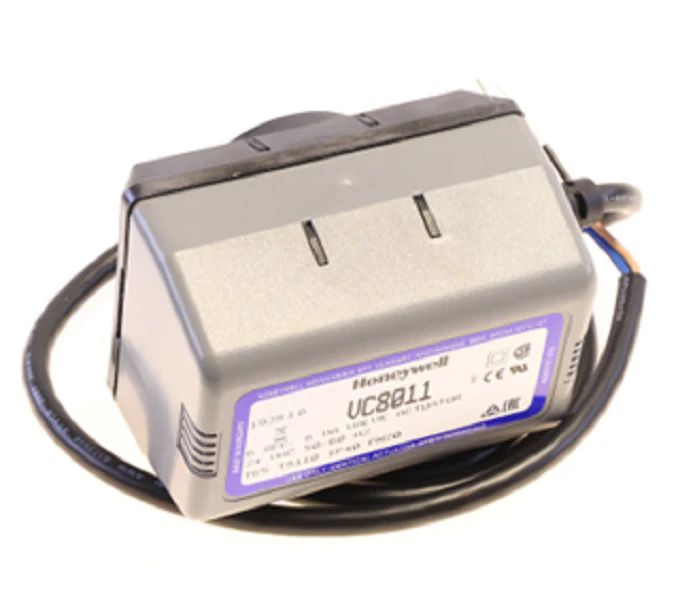

Resideo VC8011ZZ00 Actuator
The Resideo VC8011ZZ00 Actuator is a professional-grade 2-position low voltage actuator engineered for precise control in hydronic systems. This 24V zone valve actuator is fully compatible with both 2-way and 3-way VC series valves, providing a high close-off pressure of 60 psi to prevent leakage and ensure reliable flow regulation. Designed with the field technician in mind, the Honeywell VC8011ZZ00 features a quick-connect mounting system that allows for head replacement without draining the system, significantly reducing labor time on the job site. The unit includes a 39-inch plenum-rated cable and a 3/8-inch flexible conduit adapter, making it ideal for fan coil systems, baseboard radiators, and convectors. With a 6-second drive time at 60 Hz and a double-insulated plastic housing, this replacement HVAC actuator delivers consistent performance in demanding residential and light commercial environments. Its internal logic and limit switches eliminate motor overrun, ensuring long-term operational stability without the need for periodic calibration.
Key Benefits- Direct-Coupled Installation: The quick-release mechanism allows for rapid head removal and installation without the need to isolate or drain the hydronic system.
- Broad Compatibility: Seamlessly integrates with VCZ1000, 1100, 6000, and 6100 series valve bodies for versatile application across various piping configurations.
- Reliable Close-Off: Rated for 60 psi maximum differential pressure, ensuring positive shut-off and preventing ghost flow in hydronic zones.
- Durable Construction: Features a double-insulated design and a manual lever for emergency operation or system testing during commissioning.
- Efficient Power Usage: Consumes only 6 VA during drive cycles and operates silently to minimize water hammer through sinusoidal valve travel.
Does this actuator require manual resetting after a power failure?
No, the VC8011ZZ00 is designed to stay in its last position during a power loss and will resume normal operation based on the thermostat's control signal once power is restored.
Can I use this on a 3-way mixing valve?
Yes, this actuator is compatible with both 2-way and 3-way VC series valves, including those used in diverting or mixing applications.
What thermostat should I use with this actuator?
This 2-position actuator works with most 24V SPST controllers, including the T8601D, T8401C, and T8360 series, as well as many power-stealing electronic thermostats.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $61.16
-65%$61.16
$21.41Resideo VC8011ZZ00 Actuator
The Resideo VC8011ZZ00 Actuator is a professional-grade 2-position low voltage actuator engineered for precise control in hydronic systems. This 24V zone valve actuator is fully compatible with both 2-way and 3-way VC series valves, providing a high close-off pressure of 60 psi to prevent leakage and ensure reliable flow regulation. Designed with the field technician in mind, the Honeywell VC8011ZZ00 features a quick-connect mounting system that allows for head replacement without draining the system, significantly reducing labor time on the job site. The unit includes a 39-inch plenum-rated cable and a 3/8-inch flexible conduit adapter, making it ideal for fan coil systems, baseboard radiators, and convectors. With a 6-second drive time at 60 Hz and a double-insulated plastic housing, this replacement HVAC actuator delivers consistent performance in demanding residential and light commercial environments. Its internal logic and limit switches eliminate motor overrun, ensuring long-term operational stability without the need for periodic calibration.
Key Benefits- Direct-Coupled Installation: The quick-release mechanism allows for rapid head removal and installation without the need to isolate or drain the hydronic system.
- Broad Compatibility: Seamlessly integrates with VCZ1000, 1100, 6000, and 6100 series valve bodies for versatile application across various piping configurations.
- Reliable Close-Off: Rated for 60 psi maximum differential pressure, ensuring positive shut-off and preventing ghost flow in hydronic zones.
- Durable Construction: Features a double-insulated design and a manual lever for emergency operation or system testing during commissioning.
- Efficient Power Usage: Consumes only 6 VA during drive cycles and operates silently to minimize water hammer through sinusoidal valve travel.
Does this actuator require manual resetting after a power failure?
No, the VC8011ZZ00 is designed to stay in its last position during a power loss and will resume normal operation based on the thermostat's control signal once power is restored.
Can I use this on a 3-way mixing valve?
Yes, this actuator is compatible with both 2-way and 3-way VC series valves, including those used in diverting or mixing applications.
What thermostat should I use with this actuator?
This 2-position actuator works with most 24V SPST controllers, including the T8601D, T8401C, and T8360 series, as well as many power-stealing electronic thermostats.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
