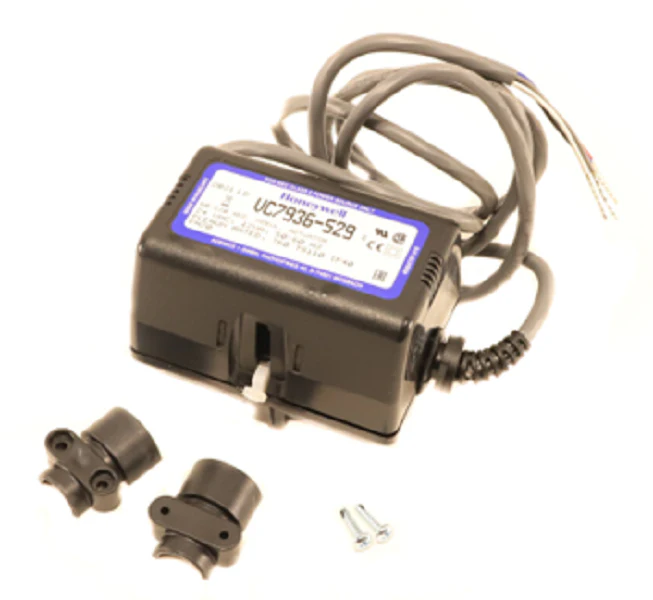

Resideo VC7936ZZ11-529 Actuator
The Resideo VC7936ZZ11-529 Actuator is a versatile, high-performance solution for hydronic control applications, specifically designed for VC Series zone valves. This modulating control valve actuator supports 2-10Vdc, floating, and 24Vac on/off signals, providing internal flexibility for various BMS integrations. Built for demanding environments, it features a 60# close-off pressure rating and a spring return fail-safe mechanism that can be configured for normally open or normally closed operation. The unit delivers a 120/60 second nominal drive time with a rapid 12-second spring return for precise temperature regulation and system protection. For simplified installation, it includes a 5-foot plenum-rated cable, a flexible conduit adapter, and a manual operating lever for commissioning and manual override.
- Universal Control Compatibility: Seamlessly interfaces with 2-10 Vdc HVAC controllers and standard 24V floating or on/off thermostats.
- Reliable Fail-Safe Operation: Mechanical spring return ensures the valve reaches its safety position during power loss, preventing overheating or freezing.
- High Close-Off Performance: Rated at 60 psi to prevent leakage and handle high-head pressure pumps in commercial hydronic circuits.
- Contractor-Friendly Installation: The plenum-rated cable and conduit adapter meet strict building codes, while the spring return actuator design allows for quick head replacement without draining the system.
Common Questions
Is the Resideo VC7936 compatible with Honeywell VC series valves?
Yes, this actuator serves as a direct replacement head for all Honeywell and Resideo VC series 2-way and 3-way valve bodies.
Can I manually open the valve if the 24V power supply fails?
Yes, the integrated manual lever allows technicians to manually position the valve for system filling or emergency bypass.
How do I change the fail-safe direction on this model?
The fail-safe direction (normally open or normally closed) is determined by the actuator orientation and internal configuration during installation on the VC valve body.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
