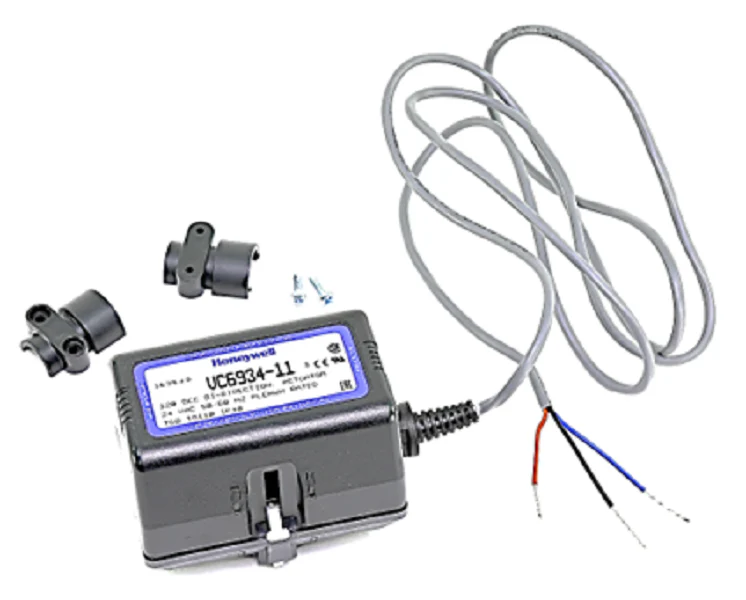

Resideo VC6934ZZ11 Actuator
The Resideo VC6934ZZ11 Actuator is a professional-grade 24VAC floating valve actuator engineered for precise hydronic control in fan coil units, radiators, and central convection systems. Built as a non-spring return unit, this model provides reliable SP3T tri-state control, making it a staple for technicians managing Honeywell VC series valves. With a 60# closeoff pressure rating, it ensures tight shut-off against high differential pressures, maintaining system integrity in both 2-way and 3-way valve configurations. This specific VC6934ZZ11 model features a 5-foot plenum-rated cable for safe installation in air-handling spaces and includes a flexible conduit adapter to simplify site-specific wiring requirements. The integrated manual operated lever allows for easy manual opening during system commissioning or power outages without requiring specialized tools. Designed for direct coupled mounting, the actuator head can be replaced without draining the hydronic loop, significantly reducing downtime for 3000 and 7000 VC series assemblies.
Key Benefits for the Contractor- Universal Compatibility: Specifically designed for seamless integration with Honeywell 3000 series 2-way and 7000 series 3-way valve bodies.
- High Close-Off Performance: Delivers a robust 60 psi close-off rating to prevent leakage and ensure consistent thermal regulation across various zone demands.
- Streamlined Installation: Features a plenum-rated cable and a flexible conduit adapter to satisfy strict building codes and protection requirements.
- Efficient Field Maintenance: The non-spring return drive and manual lever allow for quick diagnostics and manual positioning during balancing or service.
- Interchangeable Design: The twist-lock bayonet mount enables actuator head installation or replacement without the need to drain the system or remove the valve body from the line.
- Is this actuator compatible with older VC series valves? This model is specifically intended for use with 3000 and 7000 series VC valve bodies. Always verify the series number on the valve body casting before installation.
- How does the SP3T floating control function? The 24V floating signal uses three wires to drive the motor to any position between fully open and fully closed, providing superior modulation compared to standard on/off units.
- Can I manually override the actuator if power is lost? Yes, the manual operated lever allows you to lock the valve in the open position for filling, venting, or emergency flow.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $144.37
-65%$144.37
$50.53Resideo VC6934ZZ11 Actuator
The Resideo VC6934ZZ11 Actuator is a professional-grade 24VAC floating valve actuator engineered for precise hydronic control in fan coil units, radiators, and central convection systems. Built as a non-spring return unit, this model provides reliable SP3T tri-state control, making it a staple for technicians managing Honeywell VC series valves. With a 60# closeoff pressure rating, it ensures tight shut-off against high differential pressures, maintaining system integrity in both 2-way and 3-way valve configurations. This specific VC6934ZZ11 model features a 5-foot plenum-rated cable for safe installation in air-handling spaces and includes a flexible conduit adapter to simplify site-specific wiring requirements. The integrated manual operated lever allows for easy manual opening during system commissioning or power outages without requiring specialized tools. Designed for direct coupled mounting, the actuator head can be replaced without draining the hydronic loop, significantly reducing downtime for 3000 and 7000 VC series assemblies.
Key Benefits for the Contractor- Universal Compatibility: Specifically designed for seamless integration with Honeywell 3000 series 2-way and 7000 series 3-way valve bodies.
- High Close-Off Performance: Delivers a robust 60 psi close-off rating to prevent leakage and ensure consistent thermal regulation across various zone demands.
- Streamlined Installation: Features a plenum-rated cable and a flexible conduit adapter to satisfy strict building codes and protection requirements.
- Efficient Field Maintenance: The non-spring return drive and manual lever allow for quick diagnostics and manual positioning during balancing or service.
- Interchangeable Design: The twist-lock bayonet mount enables actuator head installation or replacement without the need to drain the system or remove the valve body from the line.
- Is this actuator compatible with older VC series valves? This model is specifically intended for use with 3000 and 7000 series VC valve bodies. Always verify the series number on the valve body casting before installation.
- How does the SP3T floating control function? The 24V floating signal uses three wires to drive the motor to any position between fully open and fully closed, providing superior modulation compared to standard on/off units.
- Can I manually override the actuator if power is lost? Yes, the manual operated lever allows you to lock the valve in the open position for filling, venting, or emergency flow.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
