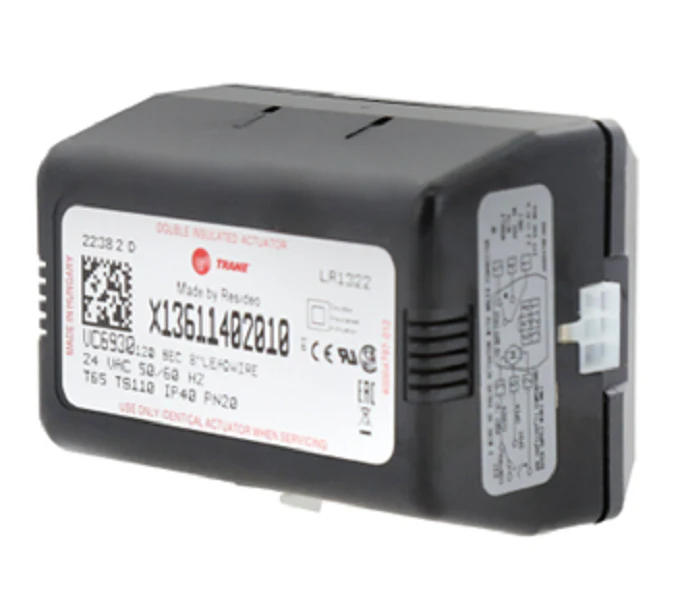

Resideo VC6930ZZ32 Modulating Actuator
The Resideo VC6930ZZ32 Modulating Actuator is a heavy-duty 24V 2/3-wire motor engineered for precise fluid control in commercial and residential hydronic systems. Built for Honeywell VC series valves, this proportional valve actuator features an internal switching mechanism that de-energizes the motor when it reaches its commanded position, significantly extending component life. Designed to eliminate water hammer through sinusoidal travel action, it ensures a soft shut-off in both 2-way and 3-way mixing or diverting applications. The VC6930ZZ32 supports SP3T tri-state floating control and provides a 120-second cycle time for high-resolution modulation of fan coils, reheat coils, and radiant heating setups. Professional installers favor the locking tab and bayonet mount, which allow for head replacement without draining the system. With a conformal coated circuit board for humidity resistance and an 8-inch lead, this OEM actuator is the drop-in ACT0480 cross-reference for modern HVACR field service.
Key Benefits for Technicians- Efficient Field Service: The quick-release locking tab allows for rapid actuator swaps without the need to depressurize or drain the hydronic loop.
- System Longevity: Sinusoidal piston travel prevents hydraulic shock and water hammer, protecting pipes and valve bodies from stress.
- Energy Conscious: The smart internal switch draws power only during the drive cycle, reducing consistent electrical load and heat buildup.
- Universal Compatibility: Fully interchangeable with all VC Series valve bodies from 1/2" to 1" for simplified truck stock management.
- Precise Modulation: Provides repeatable linear flow control for sensitive temperature regulation in perimeter heating and cooling.
Is the VC6930ZZ32 compatible with PWM signals?
Yes, while commonly used for floating control, the VC series is designed to handle pulse-width modulated 24 Vac signals depending on the specific controller output.
Can I install this actuator in any orientation?
The multi-directional mount allows for four different wiring orientations; however, it should not be mounted upside down to prevent moisture from entering the motor housing.
What does the manual lever do?
The white manual lever allows you to open the valve for system filling, venting, or draining during initial setup or maintenance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
