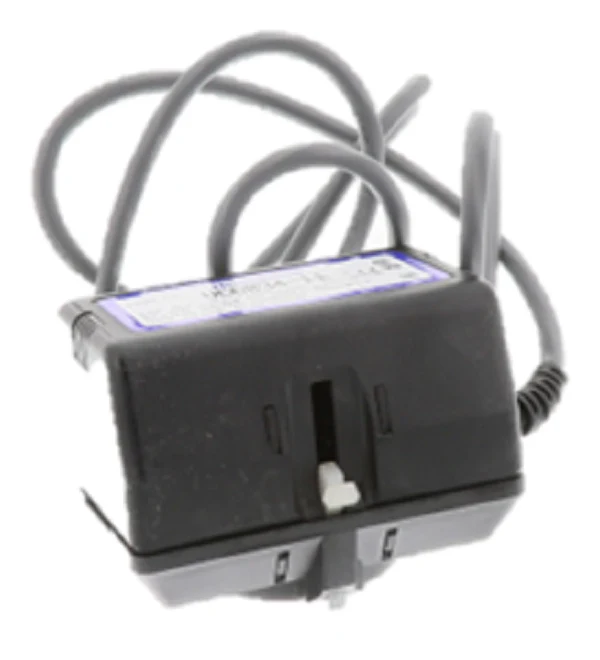

Resideo VC6834ZZ11 Actuator
The Resideo VC6834ZZ11 Actuator is a professional-grade, 24VAC floating valve actuator engineered for precise control in hydronic systems, including fan coils, radiators, and convectors. Designed as a non-spring return unit, this model provides a robust 60 psi close-off pressure, ensuring reliable shut-off even in high-differential applications. It is purpose-built for compatibility with 3000 Series 2-way and 7000 Series VC valve bodies, offering a seamless fit for technical retrofits or new installations. The integrated SPDT auxiliary switch provides essential end-switch logic for pump or boiler sequencing, while the SP3T tri-state control signal allows for incremental positioning. This unit features a 5-foot plenum-rated cable for easy routing through ceiling spaces and a manual operating lever for quick system commissioning or emergency overrides. With a 120-second timing interval and double-insulated housing, the VC6834ZZ11 delivers the durability and precision required for demanding commercial and residential HVACR environments.
Key Benefits- Universal VC Series Compatibility: Optimized specifically for 3000 and 7000 series valve bodies, ensuring a secure twist-lock connection.
- High Differential Close-off: Rated for 60# close-off, preventing leakage and ghost flows in pressurized hydronic loops.
- Integrated End Switch: The SPDT auxiliary switch enables direct feedback for system interlocks without requiring external relays.
- Simplified Installation: Equipped with a 5-foot plenum-rated cable and a manual override lever for faster field setup.
- Precise Floating Control: The SP3T floating actuator design allows for stable temperature modulation in varying load conditions.
Is the VC6834ZZ11 compatible with 1000 or 6000 series valves?
No, this specific actuator is designed exclusively for 3000 series 2-way and 7000 series VC valve bodies. Use with other series may lead to improper seating or mechanical failure.
Does this actuator return to a safe position during a power loss?
This is a non-spring return actuator. It will stay in its last position upon loss of power, making it ideal for systems where maintaining the current flow state is preferred over a fail-safe open or closed state.
What is the purpose of the 5-foot cable?
The plenum-rated cable allows for direct installation in air handling spaces without additional conduit, providing flexibility for HVAC zone valve placements in tight ceiling plenum areas.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $149.97
-65%$149.97
$52.49Resideo VC6834ZZ11 Actuator
The Resideo VC6834ZZ11 Actuator is a professional-grade, 24VAC floating valve actuator engineered for precise control in hydronic systems, including fan coils, radiators, and convectors. Designed as a non-spring return unit, this model provides a robust 60 psi close-off pressure, ensuring reliable shut-off even in high-differential applications. It is purpose-built for compatibility with 3000 Series 2-way and 7000 Series VC valve bodies, offering a seamless fit for technical retrofits or new installations. The integrated SPDT auxiliary switch provides essential end-switch logic for pump or boiler sequencing, while the SP3T tri-state control signal allows for incremental positioning. This unit features a 5-foot plenum-rated cable for easy routing through ceiling spaces and a manual operating lever for quick system commissioning or emergency overrides. With a 120-second timing interval and double-insulated housing, the VC6834ZZ11 delivers the durability and precision required for demanding commercial and residential HVACR environments.
Key Benefits- Universal VC Series Compatibility: Optimized specifically for 3000 and 7000 series valve bodies, ensuring a secure twist-lock connection.
- High Differential Close-off: Rated for 60# close-off, preventing leakage and ghost flows in pressurized hydronic loops.
- Integrated End Switch: The SPDT auxiliary switch enables direct feedback for system interlocks without requiring external relays.
- Simplified Installation: Equipped with a 5-foot plenum-rated cable and a manual override lever for faster field setup.
- Precise Floating Control: The SP3T floating actuator design allows for stable temperature modulation in varying load conditions.
Is the VC6834ZZ11 compatible with 1000 or 6000 series valves?
No, this specific actuator is designed exclusively for 3000 series 2-way and 7000 series VC valve bodies. Use with other series may lead to improper seating or mechanical failure.
Does this actuator return to a safe position during a power loss?
This is a non-spring return actuator. It will stay in its last position upon loss of power, making it ideal for systems where maintaining the current flow state is preferred over a fail-safe open or closed state.
What is the purpose of the 5-foot cable?
The plenum-rated cable allows for direct installation in air handling spaces without additional conduit, providing flexibility for HVAC zone valve placements in tight ceiling plenum areas.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
