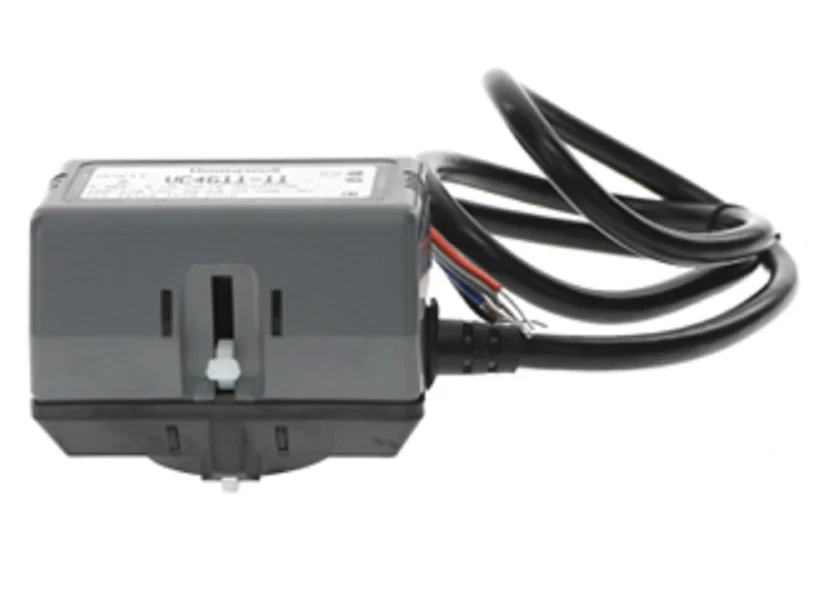

Resideo VC4611ZZ11 Actuator
The Resideo VC4611ZZ11 Actuator is a professional-grade, high-performance solution for precise zone control in hydronic systems. This 240vac two-position actuator is engineered for a non-spring return operation, ensuring the valve remains in its last position during power loss to prevent sudden system shocks. Designed for seamless integration, it is compatible with both two-way and three-way VC series valves, making it a versatile staple for fan coil units, radiators, and convectors. The direct coupled mounting allows for rapid installation or head replacement without the need to drain the system, significantly reducing downtime for your clients. With a 60psi maximum close-off rating, this SPST valve actuator provides reliable shut-off in high-head pressure applications. The unit comes equipped with a 39" lead wire cable and an integrated auxiliary switch (end switch) for slaving pumps or verifying stroke completion, ensuring efficient sequence of operation in complex HVACR layouts.
Key Benefits- Quick-Change Design: Replace the actuator head in seconds without breaking into the hydronic loop or draining the system.
- Silent Operation: Utilizes a sinusoidal travel pattern to eliminate water hammer and ensure quiet performance in residential or commercial spaces.
- Low Power Consumption: Efficient motor design draws minimal power during travel and zero power when holding position.
- High Close-Off Pressure: Rated for 60 psi, providing robust performance in demanding multi-story piping applications.
- Enhanced Control: Built-in auxiliary switch allows for easy interlocking with circulators or boiler firing circuits.
Is the VC4611ZZ11 compatible with 120V systems?
No, this specific model is designed for 240vac 50/60 Hz applications. Always verify your controller voltage before installation to prevent board damage.
Does this actuator return to a closed position on power failure?
This is a non-spring return motor. It stays in its current position when power is interrupted and will resume movement once power is restored based on the thermostat demand.
Can I use this on a 3-way mixing valve?
Yes, this actuator is fully compatible with both 2-way and 3-way Resideo/Honeywell VC series valve bodies for mixing or diverting service.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $140.83
-65%$140.83
$49.29Resideo VC4611ZZ11 Actuator
The Resideo VC4611ZZ11 Actuator is a professional-grade, high-performance solution for precise zone control in hydronic systems. This 240vac two-position actuator is engineered for a non-spring return operation, ensuring the valve remains in its last position during power loss to prevent sudden system shocks. Designed for seamless integration, it is compatible with both two-way and three-way VC series valves, making it a versatile staple for fan coil units, radiators, and convectors. The direct coupled mounting allows for rapid installation or head replacement without the need to drain the system, significantly reducing downtime for your clients. With a 60psi maximum close-off rating, this SPST valve actuator provides reliable shut-off in high-head pressure applications. The unit comes equipped with a 39" lead wire cable and an integrated auxiliary switch (end switch) for slaving pumps or verifying stroke completion, ensuring efficient sequence of operation in complex HVACR layouts.
Key Benefits- Quick-Change Design: Replace the actuator head in seconds without breaking into the hydronic loop or draining the system.
- Silent Operation: Utilizes a sinusoidal travel pattern to eliminate water hammer and ensure quiet performance in residential or commercial spaces.
- Low Power Consumption: Efficient motor design draws minimal power during travel and zero power when holding position.
- High Close-Off Pressure: Rated for 60 psi, providing robust performance in demanding multi-story piping applications.
- Enhanced Control: Built-in auxiliary switch allows for easy interlocking with circulators or boiler firing circuits.
Is the VC4611ZZ11 compatible with 120V systems?
No, this specific model is designed for 240vac 50/60 Hz applications. Always verify your controller voltage before installation to prevent board damage.
Does this actuator return to a closed position on power failure?
This is a non-spring return motor. It stays in its current position when power is interrupted and will resume movement once power is restored based on the thermostat demand.
Can I use this on a 3-way mixing valve?
Yes, this actuator is fully compatible with both 2-way and 3-way Resideo/Honeywell VC series valve bodies for mixing or diverting service.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
