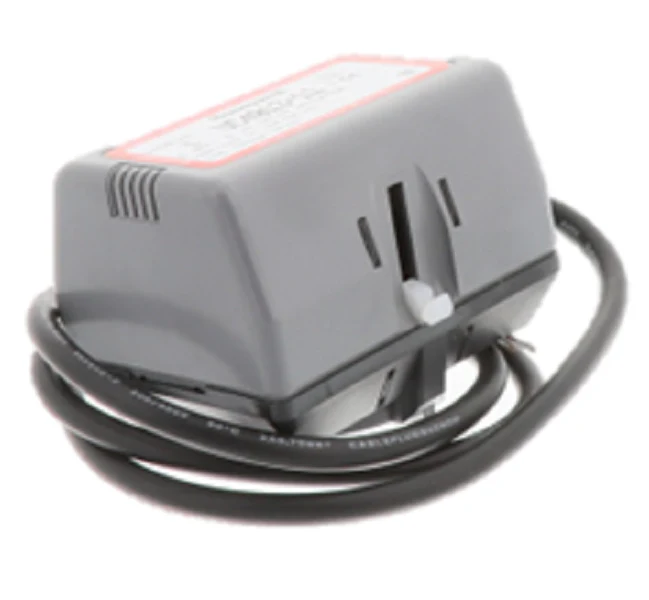

Resideo VC4013ZZ11 Actuator
The Resideo VC4013ZZ11 Actuator is a 200-240vac, high-performance motorized operator designed for precise control in hydronic systems. Engineered as an SPST two position valve actuator, this non-spring return unit is compatible with both two-way and three-way valve bodies, offering versatility for heating and cooling applications. The direct coupled mounting system allows for rapid installation without the need for specialized tools, while the 60psi maximum close rating ensures reliable shut-off against high differential pressures. Equipped with a 39-inch cable (1 meter), it facilitates straightforward electrical connections in tight mechanical closets. This VC series actuator utilizes a resilient motor design that only draws power during travel, reducing tail-end energy consumption and thermal stress on the internal components. For technicians servicing central fan coil units or zoned hydronic systems, the Resideo VC4013 provides a robust replacement solution that maintains system pressure balance and flow integrity.
Key Benefits for Hydronic Systems- Universal Compatibility: Fits all VC series valve bodies, simplifying inventory for hydronic valve actuator replacement.
- High Close-off Pressure: Rated for 60 psi close-off, preventing leakage in high-head pressure commercial loops.
- Efficient Power Usage: The SPST control logic ensures the motor only runs when transitioning positions, extending the service life of the drive train.
- Quick-Fit Design: Features a direct coupled interface that enables "twist and lock" replacement without draining the system.
Is the VC4013ZZ11 suitable for 120V systems?
No, this specific model is rated for 200-240vac operation. Installing this on a 120V circuit will result in insufficient torque and potential motor failure.
Can this actuator be used on both 2-way and 3-way valves?
Yes, the Resideo VC4013ZZ11 is designed to actuate the universal plunger found in both 2-way and 3-way VC series valve bodies.
Does this unit return to a fail-safe position during a power outage?
This is a non-spring return actuator. It will remain in its last position if electrical power is lost until power is restored and the controller signals a move.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $80.62
-65%$80.62
$28.22Resideo VC4013ZZ11 Actuator
The Resideo VC4013ZZ11 Actuator is a 200-240vac, high-performance motorized operator designed for precise control in hydronic systems. Engineered as an SPST two position valve actuator, this non-spring return unit is compatible with both two-way and three-way valve bodies, offering versatility for heating and cooling applications. The direct coupled mounting system allows for rapid installation without the need for specialized tools, while the 60psi maximum close rating ensures reliable shut-off against high differential pressures. Equipped with a 39-inch cable (1 meter), it facilitates straightforward electrical connections in tight mechanical closets. This VC series actuator utilizes a resilient motor design that only draws power during travel, reducing tail-end energy consumption and thermal stress on the internal components. For technicians servicing central fan coil units or zoned hydronic systems, the Resideo VC4013 provides a robust replacement solution that maintains system pressure balance and flow integrity.
Key Benefits for Hydronic Systems- Universal Compatibility: Fits all VC series valve bodies, simplifying inventory for hydronic valve actuator replacement.
- High Close-off Pressure: Rated for 60 psi close-off, preventing leakage in high-head pressure commercial loops.
- Efficient Power Usage: The SPST control logic ensures the motor only runs when transitioning positions, extending the service life of the drive train.
- Quick-Fit Design: Features a direct coupled interface that enables "twist and lock" replacement without draining the system.
Is the VC4013ZZ11 suitable for 120V systems?
No, this specific model is rated for 200-240vac operation. Installing this on a 120V circuit will result in insufficient torque and potential motor failure.
Can this actuator be used on both 2-way and 3-way valves?
Yes, the Resideo VC4013ZZ11 is designed to actuate the universal plunger found in both 2-way and 3-way VC series valve bodies.
Does this unit return to a fail-safe position during a power outage?
This is a non-spring return actuator. It will remain in its last position if electrical power is lost until power is restored and the controller signals a move.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
