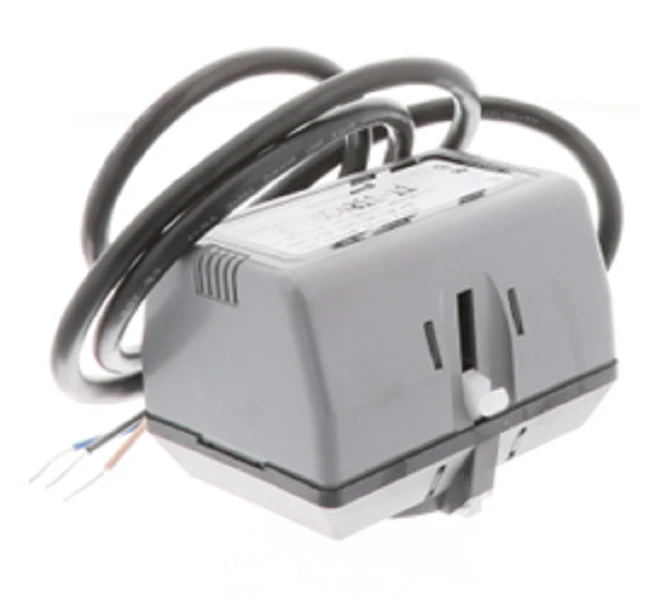

Resideo VC4011ZZ11 Actuator
The Resideo VC4011ZZ11 Actuator is a line-voltage, 120vac valve actuator designed for precise ON/OFF control in hydronic heating and cooling systems. Built for SPST two-position logic, this non-spring return actuator is compatible with VC Series 2-way and 3-way valves, specifically the 1000 and 6000 series bodies. This direct-coupled mounting head allows for tool-free installation and replacement without the need to drain the system, minimizing downtime during field service. The 60 psi maximum close-off rating ensures reliable shut-off against high differential pressures in fan coil units and radiators. This model features a 39" plenum-rated cable with molded strain relief for secure electrical termination. With a fast 6-second nominal timing at 60Hz and minimal power consumption of only 6 VA while driving, the VC4011ZZ11 provides efficient performance for commercial and residential hydronic HVAC applications.
Key Benefits- Field-Replaceable Design: The actuator head can be swapped out in seconds without breaking pipe connections or draining the loop.
- High Close-Off Pressure: Delivers a consistent 60 psi close-off rating to prevent leakage in high-demand zone systems.
- Optimized Compatibility: Engineered specifically for Resideo and Honeywell VC Series valve bodies used in fan coils and convectors.
- Efficient Operation: Drawing only 6 VA during travel, it maintains a low electrical footprint for multi-zone installations.
- Manual Override: Features a built-in manual lever to allow for system filling, venting, or emergency operation.
Is the VC4011ZZ11 a direct replacement for the VC4010-11?
Yes, the VC4011ZZ11 is the current replacement for the discontinued VC4010-11. Note that the VC4011ZZ11 is a fail-in-place (non-spring return) unit; always verify your control sequence before installation.
Does this actuator require a special tool for mounting to the valve body?
No, this is a direct-coupled actuator that uses a quick-lock mechanism. You simply align the head and press down to snap it into place on any compatible VC series valve body.
Can I use this actuator with a 24V thermostat?
This specific model is a 120vac line-voltage actuator. It must be powered by a 120V source. If your controller outputs 24V, you will require an isolation relay or a 24V version (such as the VC8111 series).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $85.51
-65%$85.51
$29.93Resideo VC4011ZZ11 Actuator
The Resideo VC4011ZZ11 Actuator is a line-voltage, 120vac valve actuator designed for precise ON/OFF control in hydronic heating and cooling systems. Built for SPST two-position logic, this non-spring return actuator is compatible with VC Series 2-way and 3-way valves, specifically the 1000 and 6000 series bodies. This direct-coupled mounting head allows for tool-free installation and replacement without the need to drain the system, minimizing downtime during field service. The 60 psi maximum close-off rating ensures reliable shut-off against high differential pressures in fan coil units and radiators. This model features a 39" plenum-rated cable with molded strain relief for secure electrical termination. With a fast 6-second nominal timing at 60Hz and minimal power consumption of only 6 VA while driving, the VC4011ZZ11 provides efficient performance for commercial and residential hydronic HVAC applications.
Key Benefits- Field-Replaceable Design: The actuator head can be swapped out in seconds without breaking pipe connections or draining the loop.
- High Close-Off Pressure: Delivers a consistent 60 psi close-off rating to prevent leakage in high-demand zone systems.
- Optimized Compatibility: Engineered specifically for Resideo and Honeywell VC Series valve bodies used in fan coils and convectors.
- Efficient Operation: Drawing only 6 VA during travel, it maintains a low electrical footprint for multi-zone installations.
- Manual Override: Features a built-in manual lever to allow for system filling, venting, or emergency operation.
Is the VC4011ZZ11 a direct replacement for the VC4010-11?
Yes, the VC4011ZZ11 is the current replacement for the discontinued VC4010-11. Note that the VC4011ZZ11 is a fail-in-place (non-spring return) unit; always verify your control sequence before installation.
Does this actuator require a special tool for mounting to the valve body?
No, this is a direct-coupled actuator that uses a quick-lock mechanism. You simply align the head and press down to snap it into place on any compatible VC series valve body.
Can I use this actuator with a 24V thermostat?
This specific model is a 120vac line-voltage actuator. It must be powered by a 120V source. If your controller outputs 24V, you will require an isolation relay or a 24V version (such as the VC8111 series).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
