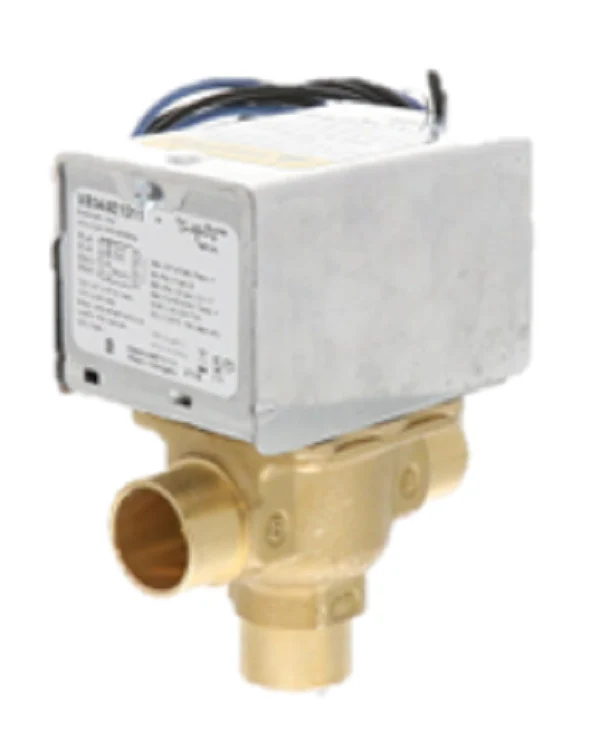

Resideo V8044E1011 Valve
The Resideo V8044E1011 is a professional-grade 3-way diverting zone valve designed for precision control in closed-loop hydronic systems. Featuring a 3/4 sweat connection and a high-torque 24V actuator, this valve provides reliable flow redirection between two different circuits. The spring return mechanism ensures the valve defaults to the de-energized position during power loss, while the integrated manual opener allows for system filling and emergency bypass operations. Built for durability, the unit features a brass body, stainless steel stem, and a brass seat to resist corrosion and scaling in high-duty cycle applications. With a 7.0 CV rating and a 10 PSI close-off pressure, it maintains optimal flow velocity while preventing hammer. The inclusion of a normally open auxiliary switch allows for seamless end-switch integration to signal boiler firing or pump operation the moment the valve reaches its full stroke.
Key Benefits for the Installer- Efficient Hydronic Balancing: The 7.0 CV flow capacity minimizes pressure drop across the loop, ensuring consistent heat distribution.
- Contractor-Friendly Wiring: Equipped with 18-inch lead wires and an integrated auxiliary switch for faster control circuit termination.
- Rugged Internal Construction: The stainless steel stem and brass internals provide long-term reliability in varying water chemistries.
- Serviceability: The replaceable power head allows for field repairs without draining the entire system or cutting into the 3/4 inch copper piping.
What is the maximum fluid temperature for the V8044E1011?
This diverting zone valve is rated for standard hydronic applications, typically handling fluid temperatures up to 200°F (93°C) and ambient temperatures up to 125°F.
Can this valve be used for steam applications?
No, the V8044E1011 is engineered specifically for closed-loop hydronic systems using water or glycol solutions. It is not rated for steam service.
How does the auxiliary switch function in a control string?
The normally open auxiliary switch closes when the valve is fully energized, completing the circuit to an HVAC transformer or boiler controller to initiate the next stage of operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $161.66
-65%$161.66
$56.58Resideo V8044E1011 Valve
The Resideo V8044E1011 is a professional-grade 3-way diverting zone valve designed for precision control in closed-loop hydronic systems. Featuring a 3/4 sweat connection and a high-torque 24V actuator, this valve provides reliable flow redirection between two different circuits. The spring return mechanism ensures the valve defaults to the de-energized position during power loss, while the integrated manual opener allows for system filling and emergency bypass operations. Built for durability, the unit features a brass body, stainless steel stem, and a brass seat to resist corrosion and scaling in high-duty cycle applications. With a 7.0 CV rating and a 10 PSI close-off pressure, it maintains optimal flow velocity while preventing hammer. The inclusion of a normally open auxiliary switch allows for seamless end-switch integration to signal boiler firing or pump operation the moment the valve reaches its full stroke.
Key Benefits for the Installer- Efficient Hydronic Balancing: The 7.0 CV flow capacity minimizes pressure drop across the loop, ensuring consistent heat distribution.
- Contractor-Friendly Wiring: Equipped with 18-inch lead wires and an integrated auxiliary switch for faster control circuit termination.
- Rugged Internal Construction: The stainless steel stem and brass internals provide long-term reliability in varying water chemistries.
- Serviceability: The replaceable power head allows for field repairs without draining the entire system or cutting into the 3/4 inch copper piping.
What is the maximum fluid temperature for the V8044E1011?
This diverting zone valve is rated for standard hydronic applications, typically handling fluid temperatures up to 200°F (93°C) and ambient temperatures up to 125°F.
Can this valve be used for steam applications?
No, the V8044E1011 is engineered specifically for closed-loop hydronic systems using water or glycol solutions. It is not rated for steam service.
How does the auxiliary switch function in a control string?
The normally open auxiliary switch closes when the valve is fully energized, completing the circuit to an HVAC transformer or boiler controller to initiate the next stage of operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
