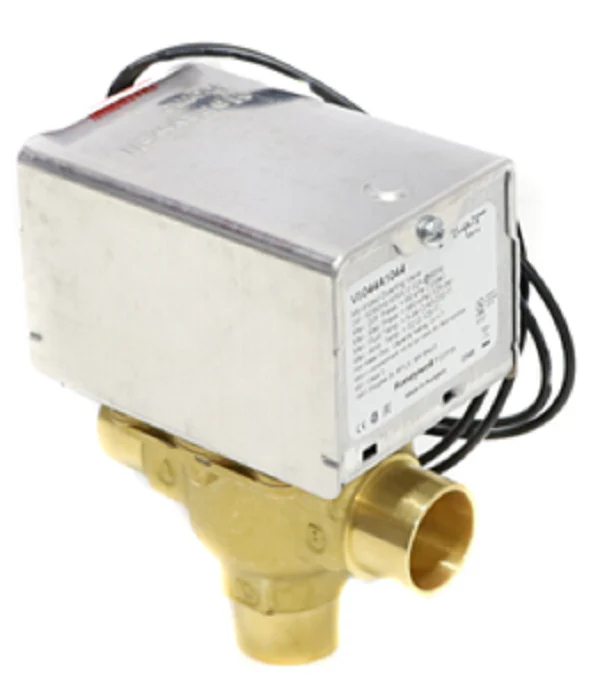

Resideo V8044A1044 Valve
The Resideo V8044A1044 is a specialized 3-way diverting zone valve designed for precision flow control in closed loop hydronic systems. Built with a heavy-duty brass body, stainless steel stem, and a durable brass seat, this 24Vac motorized zone valve is engineered for high-performance cycling applications where oxygen-free system water is maintained. It features a 3/4" sweat connection and a robust spring return mechanism, ensuring the valve defaults to the normally closed position upon power loss. With a 7 Cv flow capacity and a maximum 10 psi close-off pressure rating, this unit provides reliable diversion of hot water to multiple zones. For field convenience, a manual opener allows for system filling or emergency operation, while the QuickFit® actuator design enables the powerhead or motor to be replaced without breaking plumbing lines or draining the loop. The 18-inch lead wires streamline low voltage electrical integration for faster contractor installation.
Key Benefits- Serviceable Design: Replace the entire powerhead or just the motor without draining the hydronic system, reducing downtime during maintenance.
- Contractor-Grade Durability: Features a corrosion-resistant stainless steel stem and a brass body suited for high-cycle hydronic applications up to 200°F.
- Fail-Safe Operation: The spring return zone valve automatically redirects flow to the default port when de-energized, preventing unintended heat distribution.
- Installation Flexibility: Compact construction allows for mounting in tight spaces, such as baseboard enclosures or manifold cabinets.
- Manual Override: Integrated manual lever permits manual port opening for system flushing or troubleshooting during power outages.
Is the V8044A1044 compatible with open-loop systems?
No, this diverting zone valve is strictly for closed loop hydronic systems. Using it in open systems with dissolved oxygen can lead to premature corrosion of the brass and stainless steel components.
Can I replace the actuator without cutting the pipe?
Yes, the Resideo zone valve features a design that allows the actuator motor and head assembly to be removed via a single screw without disturbing the sweat connections or the fluid path.
What is the maximum fluid temperature this valve can handle?
This 3/4" sweat zone valve is rated for fluid temperatures ranging from 40°F to 200°F (5°C to 93°C), making it ideal for standard residential and commercial boiler loops.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
