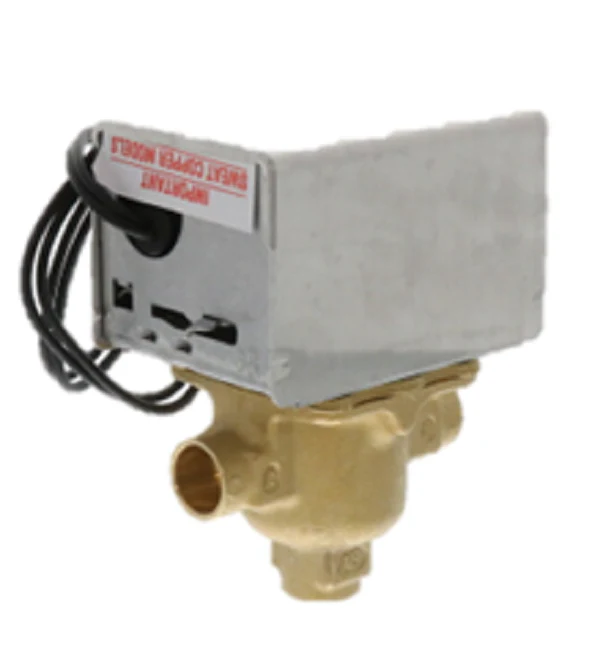

Resideo V8044A1010 Valve
The Resideo V8044A1010 is a heavy-duty 3-way diverting zone valve engineered specifically for demand-side control in closed-loop hydronic heating and cooling systems. Built with a rugged brass body and a stainless steel stem, this 24Vac motorized valve directs water flow from a common inlet to either of two outlets. It features a 1/2 inch sweat connection and a high-torque spring return mechanism, ensuring the valve defaults to the closed position during power loss. With a 4.0 Cv rating and a 20 PSI maximum close-off pressure, it provides reliable performance in high-head applications. The manual opener lever allows for system filling and drainage during initial setup or service calls. For rapid electrical integration, the unit includes 18-inch lead wires and is compatible with standard 24V thermostats and zone controllers, making it a staple for hydronic zone control and HVAC manifold systems.
Key Technical Benefits
- Diverting flow control allows for precise bypass or service routing in complex hydronic loops.
- High-torque motor ensures reliable operation even in systems with significant mineral deposits.
- Brass seat construction paired with a stainless steel stem prevents corrosion and increases service life in closed-loop heating environments.
- Manual override simplifies the air purging process and allows for manual system operation during outages.
- Compact footprint with sweat connections facilitates installation in tight mechanical closets and zone valve panels.
Common Questions
Can the V8044A1010 be used in an open-potable water system?
No, this valve is designed strictly for closed-loop hydronic systems. Using it in open systems can lead to premature oxidation resulting from constant fresh water intake.
What is the purpose of the manual lever on the side of the actuator?
The manual lever allows a technician to manually open the valve for system charging, venting, or emergency flow. It must be in the 'Auto' position for the 24V motor to resume control.
Does this valve require a specific mounting orientation?
It is best practice to install the valve with the actuator head above the piping to prevent moisture or sediment from entering the motor housing, though it can be mounted in any position from vertical to horizontal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
