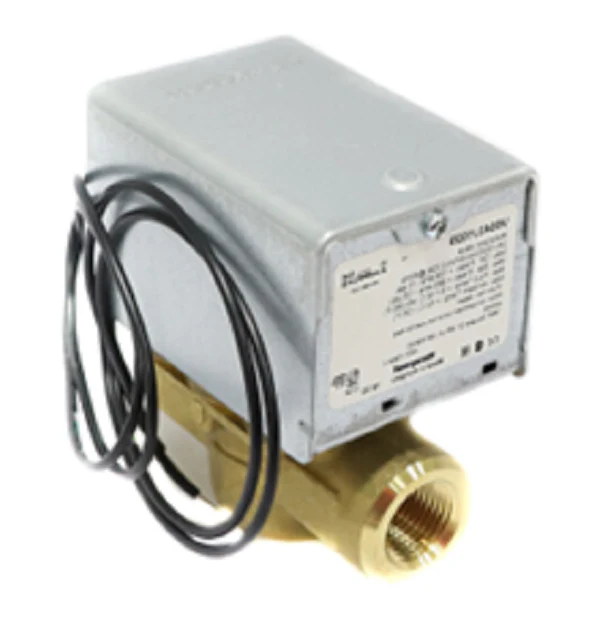

Resideo V8043J1029 Valve
The Resideo V8043J1029 Valve is a specialized two-way normally open zone valve engineered for hydronic systems and low pressure steam applications. Built with a rugged brass body, stainless steel stem, and brass seat, this motorised valve is designed for high-cycle reliability in demanding mechanical environments. It features a 1/2" NPT connection and provides a 3.5 Cv flow capacity, making it ideal for controlling heat distribution in multi-zone residential or light commercial setups. Operating on 24Vac, the unit utilizes a spring return to open mechanism, ensuring the circuit remains open during power loss to prevent freezing in hydronic loops. With a 20 pound max closeoff pressure, it effectively manages zone valve operation without leakage. Maintenance is streamlined via the manual opener and the replaceable motor actuator assembly, allowing technicians to service the unit without draining the entire system. This Resideo zone valve includes 18-inch lead wires for straightforward wiring into the low voltage thermostat circuit.
Technical Specifications and Benefits
- Optimized for Steam: Specifically rated for low pressure steam systems, ensuring durability where standard valves fail.
- Fail-Safe Configuration: The normally open design provides a critical safety buffer for hydronic heating systems during power outages.
- Precision Engineering: Features a high-quality stainless steel stem to resist mineral buildup and corrosion.
- Ease of Installation: Standard 1/2 inch NPT threads and long lead wires facilitate quick integration into existing HVAC zone control manifolds.
Common Questions
Can this valve be used for high-pressure steam applications?
No, the V8043J1029 is specifically rated for low pressure steam and hydronic fluids only. Exceeding the rated closeoff pressure can lead to seat failure or motor burnout.
Does this unit have an end switch?
The J-series models, such as this Resideo V8043J1029, are typically designed for basic zone control. If your application require a dedicated end switch for boiler firing, verify your wiring schematic as some J-series variants focus primarily on the 2nd stage or auxiliary control.
Is the actuator head replaceable?
Yes, the power head can be removed and replaced without breaking the pipe connections, which is standard for Resideo HVAC parts to minimize downtime during service calls.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
