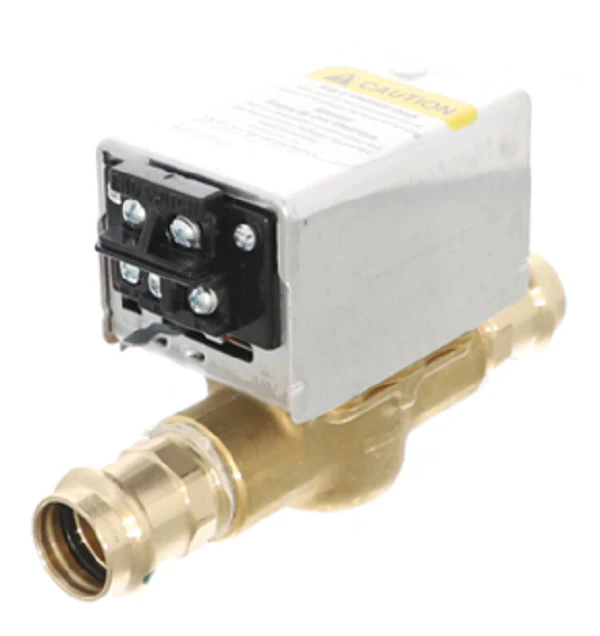

Resideo V8043F1512 Valve
The Resideo V8043F1512 is a professional-grade 3/4 inch ProPress zone valve designed for high-efficiency hydronic heating systems. As a normally closed unit, it manages the flow of water to baseboard radiators, convectors, and fan-coil units with precision. This model features terminal block connections for simplified field wiring and an integrated end switch for auxiliary equipment signaling, such as firing a circulator or boiler. Engineered for 24V systems, it operates with a 3.0 Cv flow capacity and handles a maximum fluid temperature of 200°F. The straight-through body pattern and compact brass construction allow for installation in tight mechanical headers. This valve is a standard for contractors requiring reliable zoning control and manual opener capability for troubleshooting or power failure scenarios. The actuator can be serviced or replaced without draining the system, ensuring minimal downtime for your clients.
Key Benefits- Efficient Installation: Integrated 3/4" ProPress connections significantly reduce labor time compared to traditional sweat or NPT fittings.
- Serviceability: The complete powerhead assembly and motor can be replaced without breaking the plumbing line or draining the system.
- System Integration: Built-in auxiliary end switch (50 VA pilot duty) allows for seamless communication with boiler controllers and pumps.
- Reliable Performance: Features spring-return to the closed position and can withstand static pressures up to 125 PSI.
- Manual Override: A manual lever allows for valve opening during power outages, automatically returning to the set position once power is restored.
- Can I use this valve in a potable water system? No, these valves are designed for closed-loop hydronic systems and should not be used in open-loop or potable water applications where oxygen is introduced.
- Does this model require a specific mounting orientation? It can be mounted in any position on a vertical pipe. For horizontal runs, the actuator must be at or above the centerline of the piping.
- What is the purpose of the terminal block? The terminal block replaces the standard lead wires, providing a cleaner and more secure termination point for thermostat wiring and end switch leads.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
