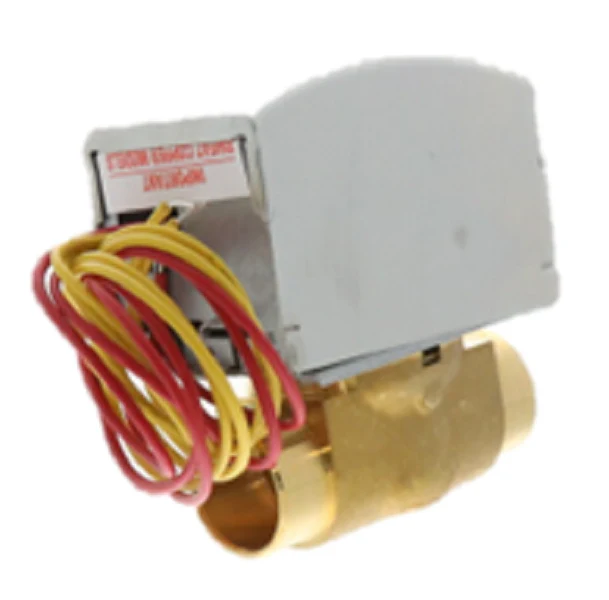

Resideo V8043E5079 Valve
The Resideo V8043E5079 Valve is a professional-grade, 2-way normally closed zone valve engineered for precision flow control in closed-loop hydronic systems. Designed for hydronic control applications, this 1-inch sweat connection zone valve features a high-capacity 8 Cv flow rating and a robust brass body with a stainless steel stem. The integrated 24V motor and spring return to close mechanism ensure reliable operation, while the normally open auxiliary switch (end switch) allows for seamless integration with circular pumps or boiler controllers. With a maximum close-off pressure of 8 psi and a 300 psi static pressure rating, this valve is built to handle standard residential and light commercial heating clusters without risk of bypass.
Installation is streamlined via the QuickFit powerhead, which allows for actuator removal without draining the system or breaking plumbing lines. This Honeywell V8043E5079 model includes 18-inch lead wires and a manual opener lever, providing contractors with a reliable override during commissioning or power failures. Its compact design fits easily within baseboard covers, making it the industry standard for 24Vac hydronic zone valves used in radiators, convectors, and radiant floor manifolds.
Key Benefits- Efficient Flow Control: High-capacity 8 Cv rating ensures minimal pressure drop across the loop.
- Quick Serviceability: QuickFit actuator design enables rapid head replacement without disturbing the 1-inch pipe connections.
- Durable Construction: Forged brass body and EPDM rubber seals are optimized for glycol/water mixes up to 50/50.
- System Integration: Built-in SPST auxiliary end switch simplifies wiring for boiler start signals.
- Quiet Operation: Advanced motor technology reduces water hammer and operational noise in residential spaces.
Is the V8043E5079 compatible with 1000 series bodies?
Yes, the 5000 series QuickFit powerhead used on the V8043E5079 is backward compatible with older 1000 series Resideo and Honeywell valve bodies.
What is the maximum fluid temperature for this valve?
This valve is rated for fluid temperatures ranging from 40°F to 200°F (4°C to 93°C).
Can this valve be mounted upside down?
The valve can be mounted in any position on a vertical line. For horizontal piping, the actuator must be level with or above the center line of the pipe to prevent moisture from entering the motor housing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
