Resideo V8043E5061 Valve

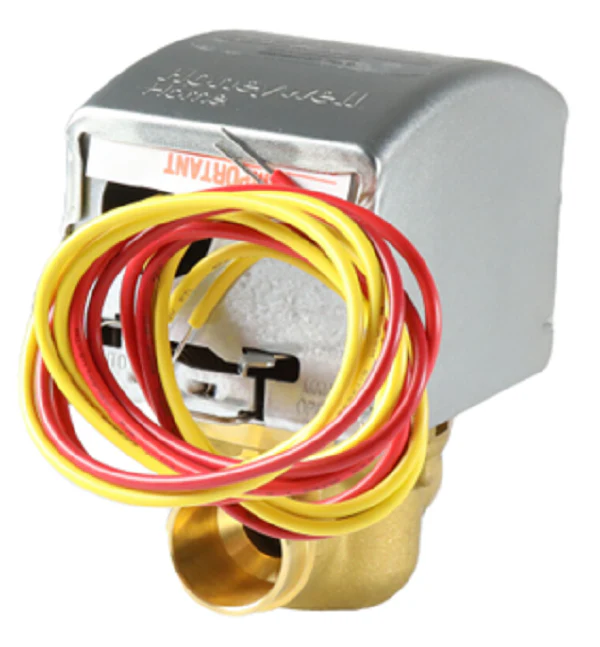

The Resideo V8043E5061 is a 3/4-inch sweat connection zone valve engineered for high-performance hydronic control in closed-loop systems. This 2-way normally closed valve features a QuickFit pushbutton powerhead, allowing for rapid actuator removal and service without the need to drain the system or break plumbing lines. Constructed with a forged brass body, stainless steel stem, and a brass seat, the V8043E5061 is built for durability in residential and light commercial heating applications. It operates on 24Vac and utilizes a spring return to close mechanism, ensuring reliable flow management. With an 8 Cv flow capacity and a 8 psi maximum close-off pressure, this valve provides efficient straight-through water control. The integrated normally open auxiliary switch (end switch) allows for seamless sequence control of circulators or boiler firing. This unit includes 18-inch leads for flexible wiring and a manual opener for system filling or operation during power failures, which automatically resets once power is restored.
Key Benefits
- Interchangeable Design: The 5000 Series powerhead is backward compatible with existing V8043 1000 series valve bodies, simplifying field replacements.
- Service Efficiency: The QuickFit pushbutton actuator and replaceable motor allow for "in-situ" maintenance without cutting copper lines.
- High Capacity Flow: Engineered for minimal pressure drop with an 8 Cv rating, suitable for baseboard, radiator, and radiant coil applications.
- Silent Operation: Advanced motor technology minimizes water hammer and operational noise in residential zones.
- Standardized Fit: 3/4-inch sweat connections ensure compatibility with standard copper hydronic piping.
Common Questions
Can the V8043E5061 be used in potable water systems?
No, this hydronic control valve is strictly for closed-loop systems. It should not be used in systems containing dissolved oxygen or for domestic hot water, as this will lead to premature deterioration of the internal rubber ball plug.
How do I wire the end switch?
The normally open auxiliary switch is typically wired in parallel with other zone valve end switches to the T-T terminals of a boiler or a circulator relay. The 18-inch leads provide ample length for connection within a junction box.
What is the maximum fluid temperature for this valve?
The V8043E5061 is rated for fluid temperatures up to 200°F (93°C), making it ideal for standard high-temperature baseboard and low-temperature radiant heating applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
