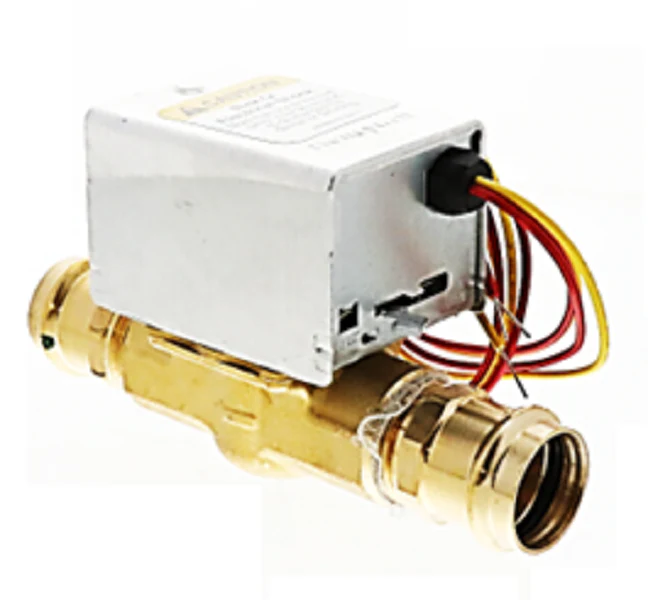

Resideo V8043E1413 Valve
As an HVAC professional, you know the value of time on the job site. The Resideo V8043E1413 is a 1-inch normally closed zone valve designed specifically for modern hydronic systems, featuring Pro Press connections that eliminate the need for sweating joints or draining large sections of the loop. Built with a rugged brass body and a corrosion-resistant actuator, this 2-way straight-through valve handles up to 300 PSI static pressure with a dependable 24V motor and an integrated end switch. The end switch allows you to verify valve position or trigger secondary equipment like circulators or boilers directly from the unit. Its service-friendly design allows the entire powerhead or just the motor to be swapped without disturbing the plumbing, making it a reliable choice for high-efficiency hydronic heating and radiant floor projects where maintenance access might be tight.
Key Benefits for the Contractor:- No-Solder Installation: 1-inch Pro Press fittings permit rapid connection without torch work, significantly reducing install time in closed-loop hydronic systems.
- High-Pressure Performance: Rated for a 300 PSI static pressure and 20 PSI close-off, ensuring reliability in large residential or Light Commercial applications.
- Integrated Auxiliary Switch: The built-in end switch simplifies wiring by providing a dry contact to signal pumps or boiler controls once the valve is fully open.
- Serviceable Powerhead: Designed for efficiency; the actuator can be removed or the 6W motor replaced without breaking line connections or draining the system.
- Manual Opener: Equipped with a manual lever to open the valve for system filling or during power failures, automatically resetting once 24VAC is restored.
How do I wire the V8043E1413 end switch to my boiler?
The two red leads provide the end switch connection, typically wired in parallel with other zone valves to the 'T-T' terminals on your boiler control or to a primary circulator relay. The two yellow leads are the 18-inch 24V power wires.
Can the V8043E1413 be used in open-loop or potable water systems?
No, this unit is engineered for closed-loop hydronic applications. Use in oxygenated or potable water systems will cause the Buna-N rubber ball and internal components to deteriorate prematurely.
Is the actuator replaceable without draining the system?
Yes, the Resideo V8043E1413 features a 5000 series powerhead that allows you to swap either the entire head or just the sync motor without touching the valve body or the fluid loop.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $190.98
-65%$190.98
$66.84Resideo V8043E1413 Valve
As an HVAC professional, you know the value of time on the job site. The Resideo V8043E1413 is a 1-inch normally closed zone valve designed specifically for modern hydronic systems, featuring Pro Press connections that eliminate the need for sweating joints or draining large sections of the loop. Built with a rugged brass body and a corrosion-resistant actuator, this 2-way straight-through valve handles up to 300 PSI static pressure with a dependable 24V motor and an integrated end switch. The end switch allows you to verify valve position or trigger secondary equipment like circulators or boilers directly from the unit. Its service-friendly design allows the entire powerhead or just the motor to be swapped without disturbing the plumbing, making it a reliable choice for high-efficiency hydronic heating and radiant floor projects where maintenance access might be tight.
Key Benefits for the Contractor:- No-Solder Installation: 1-inch Pro Press fittings permit rapid connection without torch work, significantly reducing install time in closed-loop hydronic systems.
- High-Pressure Performance: Rated for a 300 PSI static pressure and 20 PSI close-off, ensuring reliability in large residential or Light Commercial applications.
- Integrated Auxiliary Switch: The built-in end switch simplifies wiring by providing a dry contact to signal pumps or boiler controls once the valve is fully open.
- Serviceable Powerhead: Designed for efficiency; the actuator can be removed or the 6W motor replaced without breaking line connections or draining the system.
- Manual Opener: Equipped with a manual lever to open the valve for system filling or during power failures, automatically resetting once 24VAC is restored.
How do I wire the V8043E1413 end switch to my boiler?
The two red leads provide the end switch connection, typically wired in parallel with other zone valves to the 'T-T' terminals on your boiler control or to a primary circulator relay. The two yellow leads are the 18-inch 24V power wires.
Can the V8043E1413 be used in open-loop or potable water systems?
No, this unit is engineered for closed-loop hydronic applications. Use in oxygenated or potable water systems will cause the Buna-N rubber ball and internal components to deteriorate prematurely.
Is the actuator replaceable without draining the system?
Yes, the Resideo V8043E1413 features a 5000 series powerhead that allows you to swap either the entire head or just the sync motor without touching the valve body or the fluid loop.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
