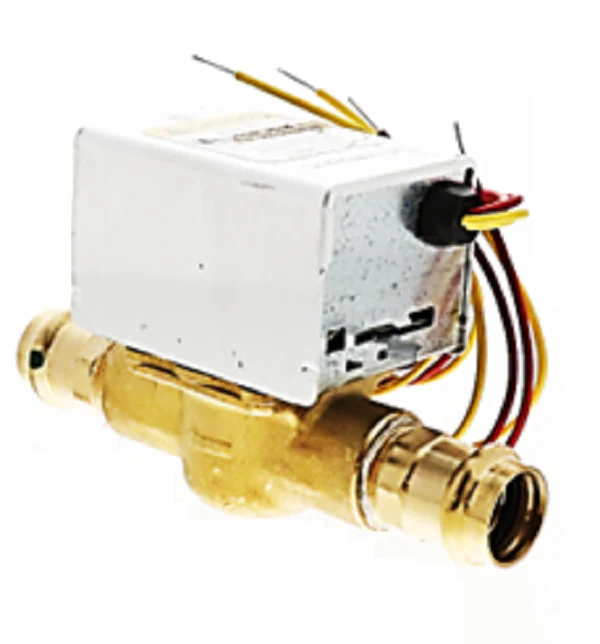

Resideo V8043E1412 Valve
The Resideo V8043E1412 is a high-performance 2-way motorized zone valve engineered for precision control in closed-loop hydronic systems. Featuring a 3/4-inch ProPress connection, this 120V valve streamlines installation by eliminating the need for sweating copper in the field. This model is built with the straight-through globe pattern and features a high-torque motor designed to handle high-temperature hydronic applications without premature failure. The integrated end switch allows for seamless dry-contact signaling to the boiler circus or zone controller, ensuring the pump only runs when the valve is fully open. With a 3.5 Cv flow capacity and a 5 psi close-off rating, it manages pressure differentials effectively across individual zones. The manual opener lever provides a critical bypass for system filling or emergency operation, making it a reliable staple for professional contractors managing residential hydronic heating and commercial terminal unit control.
- Efficient Installation: Integrated 3/4" ProPress fittings reduce labor time and eliminate fire hazards associated with soldering.
- Reliable Signaling: Built-in end switch ensures synchronized operation with the circulator pump for maximized system efficiency.
- Robust Design: Optimized for low-pressure hot water systems with a high close-off rating to prevent zone leakage or ghost heating.
- Easy Maintenance: The replaceable motor head allows for quick field service without draining the entire hydronic loop.
- High Compatibility: Standard 120V operation makes it a direct drop-in for Honeywell V8043E replacement applications.
Common HVACR Contractor Questions
Can this valve be used in steam applications?
No, the V8043 series is designed specifically for closed-loop hydronic heating and is not rated for steam or open-loop potable water systems.
Does this model require a specific orientation?
While the actuator can be mounted in multiple positions, it should never be installed with the motor head below the horizontal plane of the valve body to prevent moisture damage.
What is the purpose of the manual lever?
The lever allows the technician to manually open the port for system purging or gravity-fed operation; it automatically disengages once the motor is energized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
