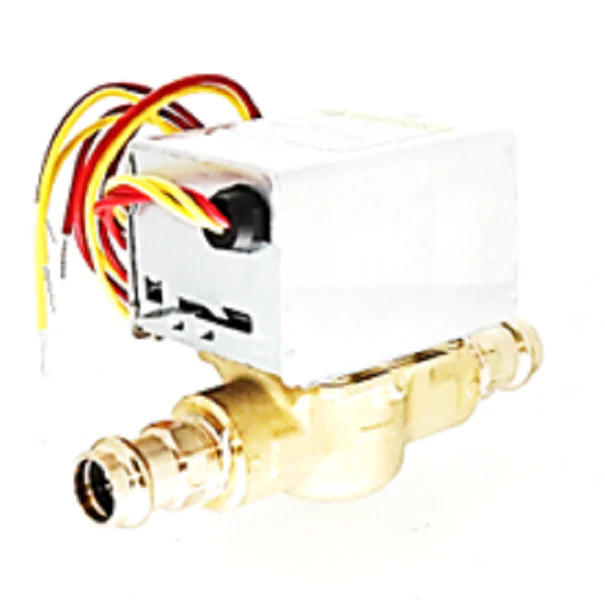

Resideo V8043E1411 Valve
The Resideo V8043E1411 is a professional-grade 1/2" ProPress zone valve engineered for precise hydrologic flow control in closed-loop systems. This 24V normally closed valve features a high-torque actuator and a straight-through body design, ensuring minimal pressure drop and reliable performance in baseboard radiation, convectors, and fan coil applications. Designed with a low-voltage motor and a built-in end switch, it allows for seamless sequencing of circulator pumps or boiler firing circuits. The integration of ProPress connections facilitates rapid installation without the need for soldering, significantly reducing labor time on the job site while maintaining a robust leak-proof seal up to 125 PSI static pressure.
Built for the rigors of mechanical rooms, the V8043E1411 handles fluid temperatures ranging from 40°F to 200°F and features a manual opener for system filling or emergency operation during power outages. The spring return mechanism ensures the valve consistently defaults to the closed position when de-energized, preventing ghost flows and over-pumping in multi-zone residential and light commercial hydronic heating systems. Its compact actuator motor can be replaced without breaking plumbing lines, making it a staple for service contractors prioritizing long-term maintainability.
Key Benefits- ProPress compatibility allows for fast, torch-free installation on copper tubing.
- Integral SPST end switch provides a dry contact to signal the boiler or pump when the valve is fully open.
- Normally closed (NC) configuration ensures zoning isolation during power loss.
- Manual override lever simplifies system purging and initial commissioning.
- Replaceable head assembly allows for mechanical service without draining the entire hydronic loop.
Can the V8043E1411 be installed in any orientation?
Standard practice dictates the valve should be mounted with the actuator above the piping. Installing it upside down can lead to sediment accumulation in the motor housing or moisture issues from condensation.
Does this valve require a specific press tool?
The ProPress fittings on this valve are compatible with standard industry-recognized press tools and jaws designed for 1/2" copper press connections.
Will this work with a 2-wire or 3-wire thermostat?
As a 24V motorized valve with an end switch, it typically integrates with 4-wire setups (two for the motor, two for the end switch) but can be used in various control logic configurations common in hydronic zoning.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
