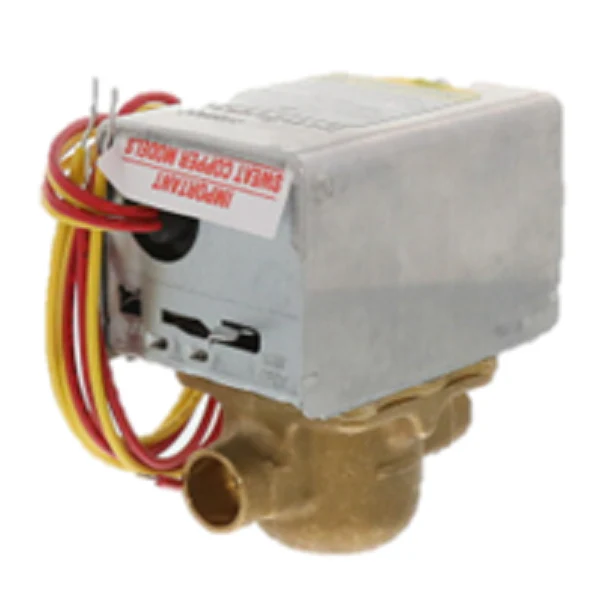

Resideo V8043E1004 Valve
The Resideo V8043E1004 is a professional-grade 1/2" sweat zone valve engineered for hydronic systems requiring reliable two-way, normally closed control. Built with a brass body and high-grade stainless steel stem, this motorized valve manages flow in baseboard or radiator loops with a 3.5 Cv flow capacity. Operating on a standard 24Vac motorized actuator, it utilizes a spring return to close mechanism and includes a manual opener for system charging or emergency operation. The unit features built-in 18" leads for streamlined wiring and an SPST auxiliary switch to signal the circulator pump or boiler once the valve is fully open. Capable of handling a 20 PSI maximum closeoff pressure, this low voltage zone valve is essential for precise multi-zone temperature control. This replacement zone valve ensures consistent performance in closed-loop systems by preventing thermal migration and maintaining hydraulic balance across residential and commercial heating manifolds.
Key Performance Benefits
- End Switch Integration: Features an SPST auxiliary switch for seamless boiler and pump sequencing.
- Durable Construction: Engineered with a brass seat and stainless steel stem to resist corrosion and scaling.
- Mechanical Override: Equipped with a manual lever to facilitate easy air purging and system testing.
- High Closeoff Rating: Rated for 20 PSI close-off to prevent ghost heating and leakage in high-head applications.
- Universal Compatibility: Standard 1/2" sweat connections and 24V operation fit most traditional hydronic configurations.
Common Installation Questions
Can the Resideo V8043E1004 be installed in any orientation?
Standard practice dictates mounting the actuator above the valve body. While it can be angled, it should never be installed upside down to prevent moisture from compromising the motor housing.
What is the purpose of the 18" lead wires on this model?
The extended leads provide extra slack for routing through control panels or j-boxes, allowing for cleaner wiring compared to terminal-only models.
How do I use the manual opener for system startup?
Push the manual lever into the "MAN. OPEN" position to lock the valve open. This allows for gravity filling and air removal without powering the system. The lever will automatically release to the "AUTO" position once the actuator is energized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
