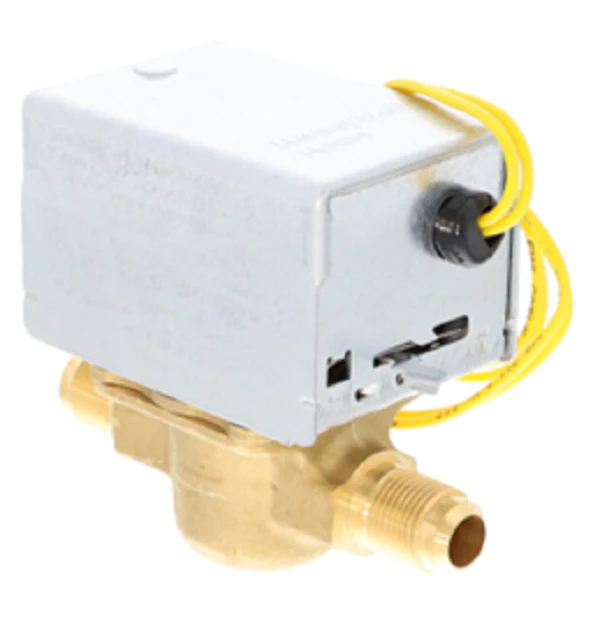

Resideo V8043C1116 Zone Valve
The Resideo V8043C1116 is a heavy-duty, 2-way normally closed zone valve engineered for precision flow control in hydronic heating systems. Designed for 24 Vac operation, this motorized valve features a 3/8" flare connection and a robust 3.5 Cv flow coefficient, making it ideal for managing individual baseboard or radiant loops. The unit utilizes a spring return to close mechanism, ensuring dependable shut-off during power loss or system de-energization.
For field reliability, the V8043C1116/U includes a manual opener that allows for manual system operation without power; the actuator automatically resets to the "auto" position once 24V power is restored. The 20 psi maximum differential pressure rating (close-off) prevents hunting and ensures a tight seal against high head-pressure pumps. Maintenance is streamlined; the replaceable powerhead and actuator motor can be serviced without breaking plumbing lines or draining the loop. With 18" leads and a compact brass body, this low voltage zone valve is built for tight mechanical closets and rigorous contractor demand.
- Efficient Hydronic Zoning: High-capacity 3.5 Cv rating supports optimal flow for 3/8-inch solar or hydronic branch lines.
- Contractor-Friendly Maintenance: Replaceable actuator and powerhead modules allow for quick repairs without draining the system.
- Manual Override: Integrated manual lever permits heat delivery during power outages or system testing.
- Industrial-Grade Construction: Features a high-temp brass body and a 125 psi static pressure rating for long-term field durability.
- Fast Cycle Timing: 15-second nominal opening time ensures rapid response to thermostat demand.
Common Questions
Can the V8043C1116 be installed in any orientation?
While these valves offer versatile installation, they should be mounted with the actuator above the horizontal plane of the piping to prevent condensate or sediment from entering the motor housing.
Does this model include end switches?
The V8043C series is typically a 2-wire configuration without an auxiliary end switch. If your boiler requires a dry-contact signal for firing, verify if an external relay or a different V8043 series model with an end switch is required.
Is the flare connection compatible with standard SAE flare nuts?
Yes, the 3/8" flare connection is designed for standard 3/8-inch flare fittings, providing a secure, leak-free mechanical joint without the need for soldering near the sensitive powerhead.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
