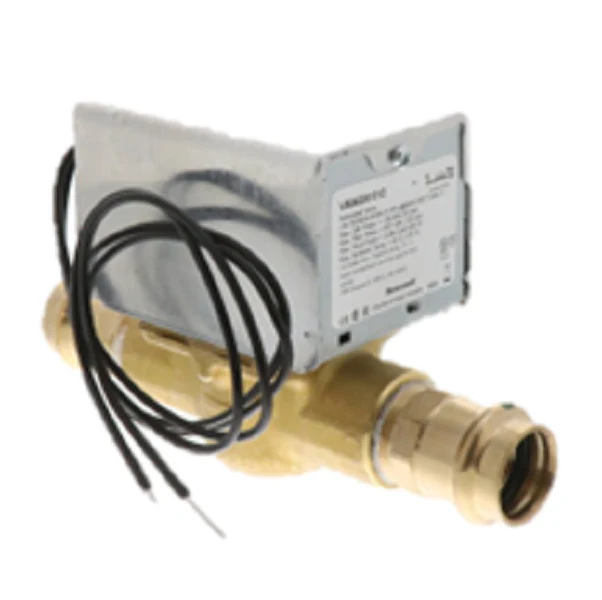

Resideo V8043A1312 Valve
The Resideo V8043A1312 is a high-performance 2-way low voltage zone valve designed for precise flow control in hydronic heating systems. Featuring a 3/4" press connection, this normaly closed valve allows for rapid installation without soldering, ensuring airtight leak-free integration into residential or light commercial loops. The 24V motor actuator provides consistent torque for reliable cycling, while the manual opener lever allows for easy system filling and troubleshooting. Engineered for high-head performance, the Resideo zone valve effectively manages differential pressure to prevent water hammer and ensure quiet operation. This model is essential for hydronic zoning, allowing technicians to isolate circuits and optimize boiler efficiency. When replacing an existing Honeywell V8043A, ensure the power head is properly aligned with the brass body to maintain a secure seal during high-temperature operation.
Key Benefits- Press-fit technology eliminates the need for sweating pipes, significantly reducing installation time on the job site.
- The normally closed (N/C) operation ensures the zone remains sealed during power outages or system idle states.
- Compatible with standard 24V thermostats and zone controllers for seamless integration into existing HVAC controls.
- Replaceable actuator head assembly allows for field service without draining the entire hydronic loop.
- Robust construction handles high-temperature fluid requirements typical of boiler zone valve applications.
Is the power head on the V8043A1312 replaceable?
Yes, the actuator motor and head assembly can be swapped out without removing the valve body from the piping, simplifying maintenance for HVAC contractors.
Can this valve be installed in a vertical orientation?
Yes, however, it is best practice to install the actuator head above the level of the piping to prevent moisture or debris from entering the motor housing.
What is the maximum fluid temperature rating?
This 3/4 inch zone valve is designed to handle standard hydronic temperatures up to 200°F (93°C), making it suitable for high-temp baseboard or radiator systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
