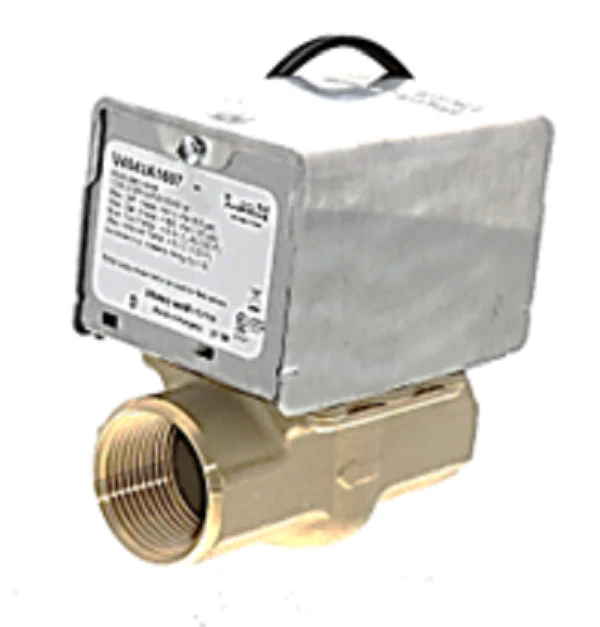

Resideo V4043A1697 Zone Valve
The Resideo V4043A1697 is a heavy-duty 120Vac motorized zone valve designed for precise flow control in closed-loop hydronic heating and cooling systems. Built with a 1-inch NPT connection, this normally closed zone valve features a 10 Cv flow capacity and a maximum differential close-off pressure of 6.5 psi, making it ideal for high-flow residential and light commercial applications. The construction utilizes a durable brass body, stainless steel stem, and EPDM rubber packing to ensure long-term reliability in fluid temperatures ranging from 40 to 200°F. The spring return mechanism ensures the valve moves to the closed position during power failure, while the manual opener lever allows for system filling and drainage without electrical power. Equipped with 18-inch lead wires for straightforward wiring, this 2-way hydronic valve is a standard-issue component for contractors requiring dependable isolation and zone control.
Technical Benefits
- High Flow Capacity: The 10 Cv rating minimizes pressure drop across the valve in 1-inch piping systems.
- Resilient Construction: Features a Buna-N rubber ball plug and brass seat for positive sealing and debris resistance.
- Manual Override: Integrated manual lever simplifies system commissioning and troubleshooting by staying in the open position until power is restored.
- Electrical Compatibility: Operates on standard 120V power, eliminating the need for a step-down transformer in specific wiring configurations.
Common Installation Questions
Can the V4043A1697 be installed in any orientation?
The valve should be installed in a vertical or horizontal pipe run, but the power head must never be positioned below the centerline of the piping to prevent moisture accumulation.
What is the maximum ambient temperature for the actuator?
The power head is designed to operate in ambient environments up to 125°F, provided the fluid temperature does not exceed its 200°F rating.
Does this valve require a specific flow direction?
Yes, flow must follow the arrow cast into the brass body to ensure the spring return and close-off pressure ratings function correctly.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
