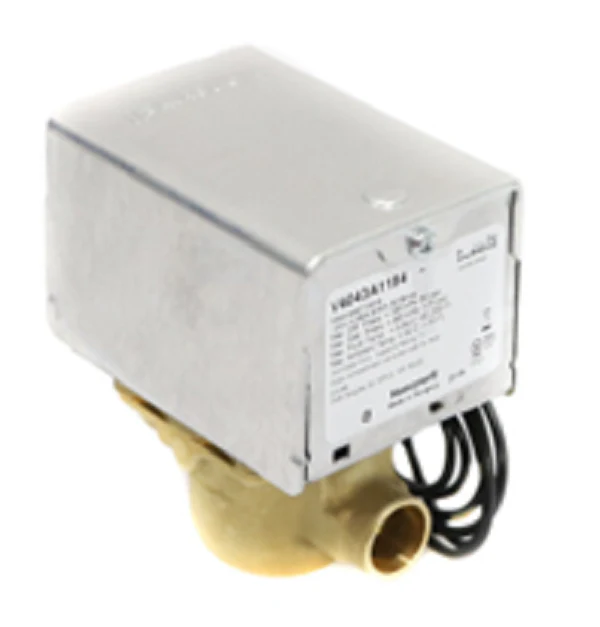

Resideo V4043A1184 Zone Valve
The Resideo V4043A1184 Zone Valve is a heavy-duty, normally closed hydronic valve designed for precision flow control in closed-loop heating systems. Engineered with a robust brass body and a stainless steel stem, this 120Vac motorized valve features a 1/2" sweat connection and a spring return to close mechanism, ensuring reliable fail-safe operation during power loss. With a 1 Cv flow capacity and a 50 Psi maximum closeoff pressure, it effectively manages fluid temperatures ranging from 40 to 200 degrees Fahrenheit. The internal assembly utilizes a Buna-N rubber ball plug and EPDM rubber packing o-rings for a tight seal against the brass seat. A built-in manual opener allows for system filling and drainage even without power, while the 18" electrical leads simplify integration into existing control circuits. This Honeywell Home zone valve replacement is a standard for contractors requiring durable HVAC zone control valves for residential and light commercial applications.
Key Benefits for Technicians:- High Closeoff Rating: The 50 Psi maximum differential pressure rating prevents leakage and "water hammer" in high-head circulator systems.
- Durable Material Stack: A combination of a brass seat and stainless steel stem resists mineral buildup and corrosion in hydronic loops.
- Simplified Serviceability: The manual override lever permits quick system testing and manual flow bypass without energizing the actuator.
- Industry Standard Compatibility: Designed as a direct drop-in for 120V hydronic zone valves, reducing downtime during field replacements.
Can this valve be installed in any orientation?
The V4043A1184 should be installed with the actuator motor above the horizontal plane of the piping to prevent moisture from entering the motor housing, though it can be mounted at any angle between vertical and 90 degrees.
Is this unit compatible with glycol systems?
Yes, the EPDM and Buna-N components are compatible with standard water and glycol heating solutions typically found in radiant and baseboard systems.
Does this model include an end switch?
This specific 1184 model is a two-wire configuration without an integrated auxiliary end switch for burner or pump sequencing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $140.28
-65%$140.28
$49.10Resideo V4043A1184 Zone Valve
The Resideo V4043A1184 Zone Valve is a heavy-duty, normally closed hydronic valve designed for precision flow control in closed-loop heating systems. Engineered with a robust brass body and a stainless steel stem, this 120Vac motorized valve features a 1/2" sweat connection and a spring return to close mechanism, ensuring reliable fail-safe operation during power loss. With a 1 Cv flow capacity and a 50 Psi maximum closeoff pressure, it effectively manages fluid temperatures ranging from 40 to 200 degrees Fahrenheit. The internal assembly utilizes a Buna-N rubber ball plug and EPDM rubber packing o-rings for a tight seal against the brass seat. A built-in manual opener allows for system filling and drainage even without power, while the 18" electrical leads simplify integration into existing control circuits. This Honeywell Home zone valve replacement is a standard for contractors requiring durable HVAC zone control valves for residential and light commercial applications.
Key Benefits for Technicians:- High Closeoff Rating: The 50 Psi maximum differential pressure rating prevents leakage and "water hammer" in high-head circulator systems.
- Durable Material Stack: A combination of a brass seat and stainless steel stem resists mineral buildup and corrosion in hydronic loops.
- Simplified Serviceability: The manual override lever permits quick system testing and manual flow bypass without energizing the actuator.
- Industry Standard Compatibility: Designed as a direct drop-in for 120V hydronic zone valves, reducing downtime during field replacements.
Can this valve be installed in any orientation?
The V4043A1184 should be installed with the actuator motor above the horizontal plane of the piping to prevent moisture from entering the motor housing, though it can be mounted at any angle between vertical and 90 degrees.
Is this unit compatible with glycol systems?
Yes, the EPDM and Buna-N components are compatible with standard water and glycol heating solutions typically found in radiant and baseboard systems.
Does this model include an end switch?
This specific 1184 model is a two-wire configuration without an integrated auxiliary end switch for burner or pump sequencing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
