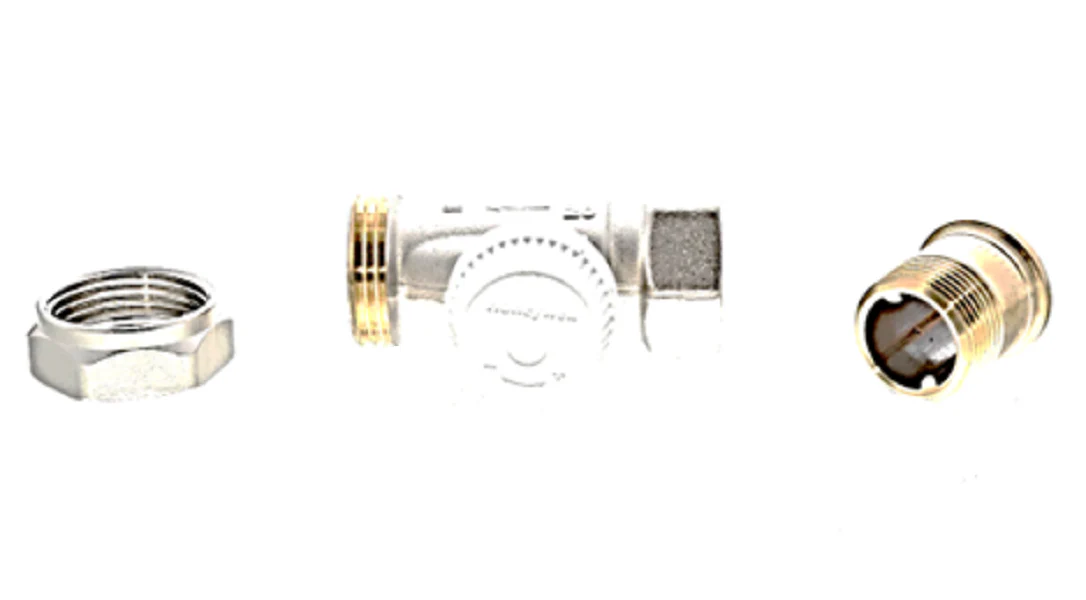

Resideo V2040DSL20 Straight Body
The Resideo V2040DSL20 Straight Body is a standard capacity thermostatic radiator valve engineered for precision temperature control in one-pipe steam and hydronic heating systems. Designed with a 3/4" NPT female inlet and a 3/4" male union tailpiece, this valve is particularly suited for straight-run piping in baseboard radiators and convectors where manual valves require upgrading. Its nickel-plated bronze construction ensures long-term durability, while the EPDM valve seat provides a reliable, tight shut-off to prevent overheating and energy waste.
This V2000 Series valve is normally open and operates without an electrical connection when paired with non-electric actuators. Utilizing an internal balancing cartridge, the V2040DSL20 maintains a flow coefficient of 2.7 Cv and can handle maximum pressures of 150 psi for hot water or 15 psi for steam applications. For technicians, the replaceable cartridge design allows for top-down servicing with a VA8200A001 service tool, eliminating the need to drain the system for routine maintenance.
Key Benefits- Precise Hydronic Balancing: The adjustable EPDM cartridge prevents under-heating and temperature overshoot in multi-zone systems.
- Universal Compatibility: Seamlessly integrates with T100, T200, and MV100 series actuators and capillary sensors for localized or remote control.
- High Steam Capacity: Rated for 63,800 BTU/hr, making it an ideal choice for high-demand one-pipe steam radiators.
- Maintenance Efficiency: Field-serviceable design allows experts to swap internal components without disturbing the piping.
- Can this valve be used for both steam and hot water? Yes, the V2040DSL20 is rated for up to 150 psi in hot water and 15 psi in steam service.
- What direction should the actuator be mounted? For straight body patterns, it is recommended to mount the sensor on the side to prevent rising ambient heat from causing premature closing.
- Is a power source required? No, this is a non-electric thermostatic valve that uses mechanical expansion for autonomous control.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $42.31
-65%$42.31
$14.81Resideo V2040DSL20 Straight Body
The Resideo V2040DSL20 Straight Body is a standard capacity thermostatic radiator valve engineered for precision temperature control in one-pipe steam and hydronic heating systems. Designed with a 3/4" NPT female inlet and a 3/4" male union tailpiece, this valve is particularly suited for straight-run piping in baseboard radiators and convectors where manual valves require upgrading. Its nickel-plated bronze construction ensures long-term durability, while the EPDM valve seat provides a reliable, tight shut-off to prevent overheating and energy waste.
This V2000 Series valve is normally open and operates without an electrical connection when paired with non-electric actuators. Utilizing an internal balancing cartridge, the V2040DSL20 maintains a flow coefficient of 2.7 Cv and can handle maximum pressures of 150 psi for hot water or 15 psi for steam applications. For technicians, the replaceable cartridge design allows for top-down servicing with a VA8200A001 service tool, eliminating the need to drain the system for routine maintenance.
Key Benefits- Precise Hydronic Balancing: The adjustable EPDM cartridge prevents under-heating and temperature overshoot in multi-zone systems.
- Universal Compatibility: Seamlessly integrates with T100, T200, and MV100 series actuators and capillary sensors for localized or remote control.
- High Steam Capacity: Rated for 63,800 BTU/hr, making it an ideal choice for high-demand one-pipe steam radiators.
- Maintenance Efficiency: Field-serviceable design allows experts to swap internal components without disturbing the piping.
- Can this valve be used for both steam and hot water? Yes, the V2040DSL20 is rated for up to 150 psi in hot water and 15 psi in steam service.
- What direction should the actuator be mounted? For straight body patterns, it is recommended to mount the sensor on the side to prevent rising ambient heat from causing premature closing.
- Is a power source required? No, this is a non-electric thermostatic valve that uses mechanical expansion for autonomous control.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
