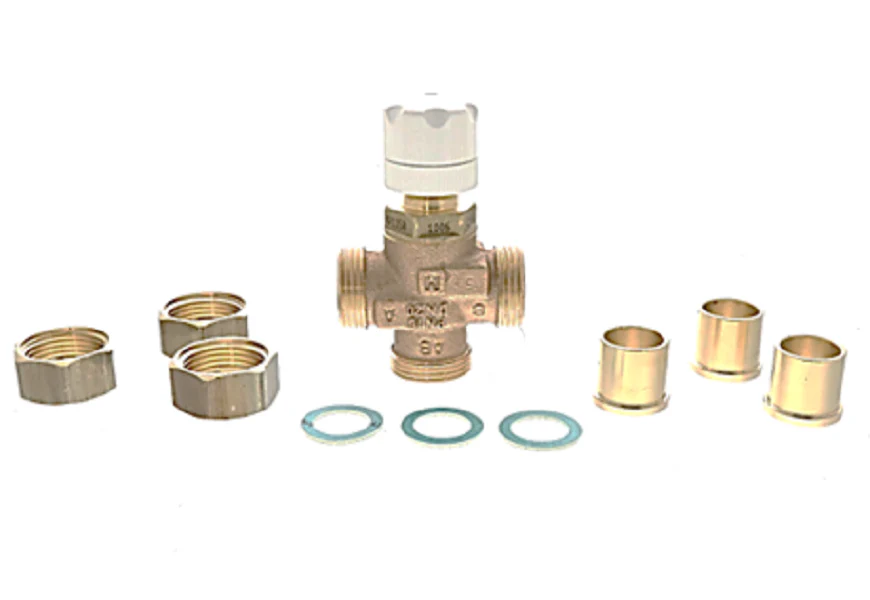

Resideo V135A1006 Valve
The Resideo V135A1006 Valve is a professional-grade 3-way mixing valve engineered for precision in hydronic heating and radiant loop applications. This 3/4 inch female sweat union valve body provides a standard 3.7 Cv flow capacity, making it a staple for contractors managing secondary loop temperatures. Constructed from high-quality bronze, the V135A1006 is designed to handle system temperatures up to 248°F and a maximum steam pressure of 232 psi. Its versatility allows for use as either a mixing or diverting valve, ensuring stable thermal performance across diverse mechanical room configurations. The valve features a 1-3/16 inch collar, specifically designed for seamless integration with T100R thermostatic actuators using a knurled ring attachment. For serviceability, the Resideo 3-way valve body includes a double stem seal design, which can facilitate certain maintenance tasks under pressure. This Resideo hydronic valve also includes a manual plastic handle for direct flow adjustment during system commissioning or troubleshooting.
Key Benefits- Dual-Function Capability: Operates efficiently as either a mixing or diverting valve in hydronic heating systems.
- High Thermal Tolerance: Rated for high-temperature applications up to 248°F with a robust 232 psi system pressure limit.
- Simplified Installation: Features 3/4" female sweat union connections for secure, leak-resistant soldering.
- Actuator Compatibility: Built with a 1-3/16" collar for direct mounting of T100R series thermostatic controllers.
- Durable Construction: Heavy-duty bronze body ensures long-term reliability in demanding radiant heating loop environments.
How do I change the V135A1006 from mixing to diverting mode?
The valve's function is determined by the piping configuration. For mixing, hook up two inlets to one outlet; for diverting, hook up one inlet to two outlets. Ensure you follow the flow direction arrows cast into the bronze body.
Is the actuator included with this valve body?
No, this is the valve body only. It is intended for use with a T100R or T100RS thermostatic actuator, which must be purchased separately to automate temperature control.
Can the internal cartridge be replaced without removing the entire valve?
Yes, the design utilizes a replaceable cartridge system (V135A-12VE) and a double stem seal, allowing for internal maintenance while the body remains piped into the system.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
