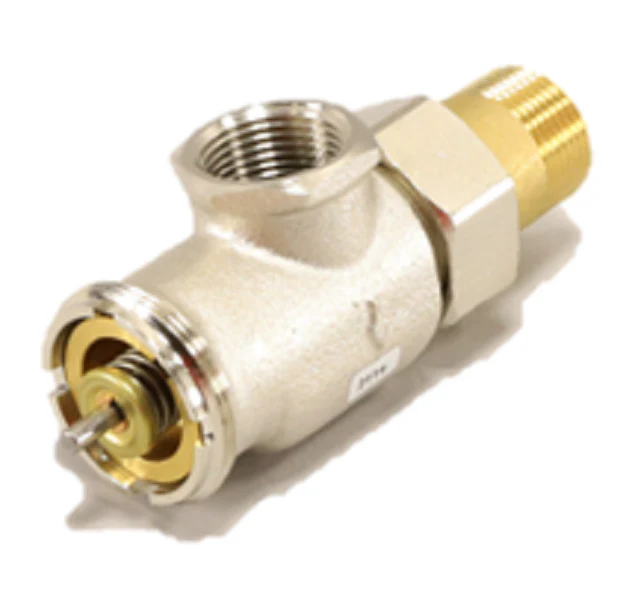

Resideo V110F1010 Angle Body
The Resideo V110F1010 is a high-capacity 3/4" threaded horizontal angle body engineered for precise temperature regulation in demanding hydronic and steam applications. Designed specifically for North American two-pipe systems, this valve body features a nickel-plated bronze cast construction and an EPDM seat disc to ensure a bubble-tight shutoff on hot water (up to 150 psi) and low-pressure steam (up to 15 psi). With a high flow coefficient of 5.8 Cv, it provides the necessary modulation for large radiators, convectors, and high-output heating units.
For service professionals, the V110F1010 is built for long-term field maintenance. All critical internal components are contained within a replaceable cartridge insert, allowing for full service or replacement using the MT110C1011 tool while the system remains pressurized and in-line. This horizontal angle pattern is the standard choice for replacing manual valves with minimal piping modification. It is optimized for use with T104 thermostatic actuators, maintaining a normally open configuration without a control mounted to prevent system freeze-ups.
Key Benefits
- High-Capacity Performance: Rated at 5.8 Cv and 162,000 BTU/hr (steam) to handle larger heating zones and high-output terminal units.
- In-Line Serviceability: Replaceable internal cartridge and dual O-ring seals allow for maintenance without draining the entire hydronic loop.
- Robust Materials: The nickel-plated bronze body and stainless steel spring provide superior corrosion resistance in both steam and water environments.
- Industry Standards: Form-fitted for 3/4" NPT connections and fully compliant with ASHRAE Standard 102-1989.
Common Questions
Which actuators are compatible with the V110F1010?
This valve body is designed for use with Resideo T104 series thermostatic actuators, including the T104A and T104V models for horizontal mounting.
Can I replace the valve internals while the system is hot?
Yes, by using the MT110C1011 service tool, the internal cartridge can be replaced while the valve remains in-line and under full system pressure.
Is this valve suitable for one-pipe steam systems?
No, the V110F1010 is specifically designed for two-pipe steam or hot water systems; it should not be used in one-pipe steam applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
