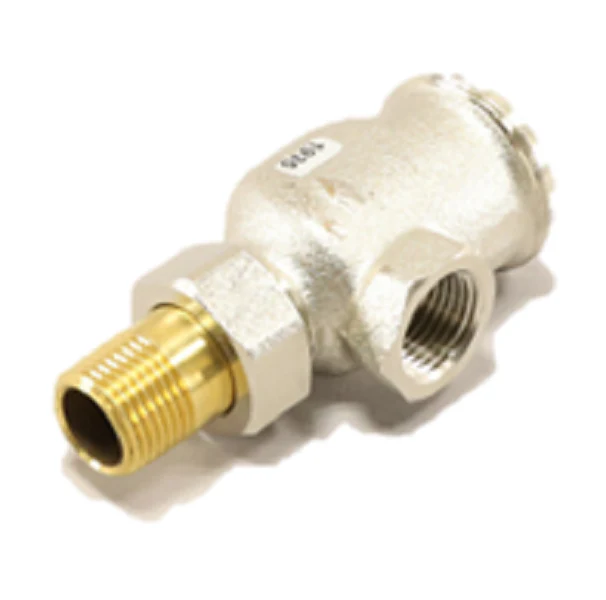

Resideo V110F1002 Angle Body
The Resideo V110F1002 is a professional-grade 1/2" threaded horizontal angle body radiator valve designed specifically for high-performance low-pressure steam and hot water heating systems. Engineered for durability, this manual thermostatic radiator valve (TRV) body features a nickel-plated brass construction and a stainless steel spindle, ensuring long-term resistance to corrosion and mineral buildup. Its angle pattern configuration is ideal for installations where the piping enters from the floor, providing a cleaner look and easier maintenance access for contractors. Designed to accommodate M30 x 1.5 threaded actuators, the V110F1002 offers precise flow control and improved system balancing. The replaceable internal valve insert allows for simplified servicing without draining the entire system, a critical feature for minimizing downtime in multi-unit residential or commercial hydronic applications. Whether you are performing a retrofit or a new installation, this HVAC zone valve ensures consistent heat distribution and energy efficiency in demanding environments.
Key Benefits:
- Optimized Flow Control: Precision-engineered for low-pressure steam and hot water applications to prevent over-heating.
- Durable Construction: Features a high-quality nickel-plated brass body and a robust stainless steel seat for extended service life.
- Standard Compatibility: Easily integrates with standard T100 series thermostatic heads or electronic actuators with M30 x 1.5 connections.
- Contractor-Friendly Design: The 1/2" NPT connection and horizontal angle configuration streamline installation in tight spaces.
- Field Serviceable: Internal valve components are accessible for cleaning or replacement without removing the valve body from the line.
Common Questions:
Can I use the V110F1002 on a high-pressure steam system?
No, this valve body is specifically rated for low-pressure steam systems and hot water applications. Always verify that your system’s operating pressure does not exceed the maximum rating of the valve to prevent premature failure.
What type of actuator fits this valve body?
The V110F1002 is compatible with most M30 x 1.5 threaded actuators, including the Resideo T100 and T104 series thermostatic operators.
Does this valve require a specific orientation?
Yes, as a horizontal angle body, it is designed for applications where the flow enters horizontally and exits upwards (or vice versa depending on system design) to optimize the thermostatic head’s performance and prevents air trapping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
