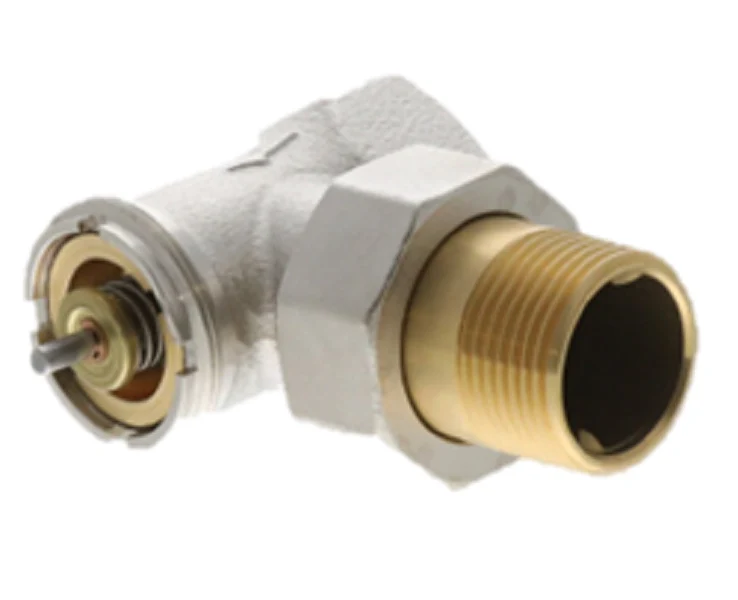

Resideo V110E1020 Angle Body
The Resideo V110E1020 Angle Body is a high-capacity thermostatic radiator valve (TRV) engineered for demanding North American hydronic and steam systems. Built with a nickel-plated bronze casted body, this 1-inch threaded valve is specifically designed to work in tandem with Resideo T104 thermostatic actuators to provide precision temperature modulation. With a substantial 7.0 Cv flow capacity and a steam rating of 193,000 BTU/hr, it handles the higher volumes required by large free-standing radiators and convectors. The EPDM valve seat disc ensures a reliable, tight shutoff, while the cartridge-style insert allows for easy field service. Technicians can replace all internal working parts using the MT110C1011 service tool without draining the system or breaking pipe connections, even while under pressure. Compatible with two-pipe systems, this angle pattern TRV body is the standard choice for contractors looking to improve hydronic heating efficiency and zone control in tight installation spaces.
Key Benefits- Field-Replaceable Cartridge: All internal components can be serviced or replaced in-line and under pressure using the specialized service tool.
- High Flow Capacity: Specifically rated at 7.0 Cv for hot water and 193,000 BTU/hr for steam to meet heavy-duty heating requirements.
- Durable Construction: The nickel-plated bronze body resists corrosion and maintains integrity in high-temperature environments up to 248°F.
- Precise Modulation: Designed for seamless integration with T104 series controls for accurate local temperature regulation.
- Standardized Compatibility: Meets ASHRAE Standard 102-1989, ensuring performance reliability in professional HVACR applications.
Is the V110E1020 compatible with one-pipe steam systems?
No, this valve body is specifically designed for two-pipe steam and hot water systems. For one-pipe applications, specific atmospheric venting controls are required.
Can I install this valve in any orientation?
The V110E1020 is an angle pattern valve. For optimal performance with a thermostatic actuator, ensure the sensor is not shielded from room air circulation by curtains or enclosures.
Do I need to shut down the boiler to service the internal components?
One of the primary advantages of this "Braukmann" style valve is that the internal cartridge can be swapped while the valve remains in-service and under pressure, provided you use the MT110C service tool.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
