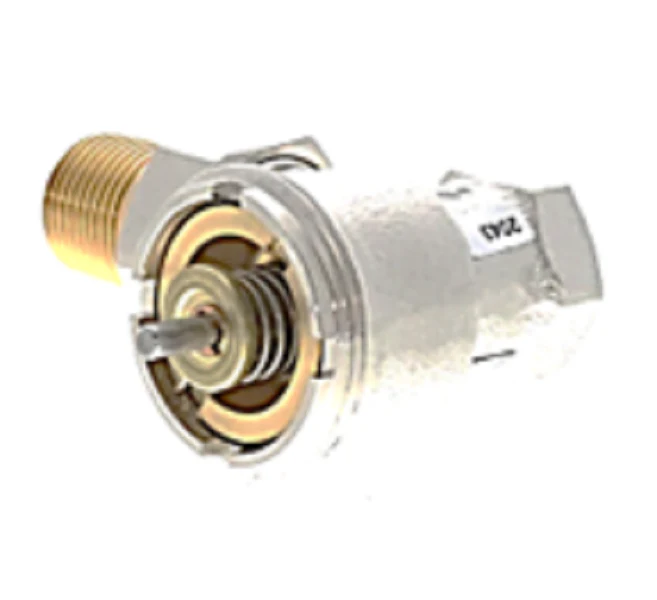

Resideo V110E1004 Angle Body
The Resideo V110E1004 is a professional-grade 1/2-inch NPT Thermostatic Radiator Valve (TRV) body designed for high-capacity hydronic systems. Featuring a vertical angle pattern, this valve body is the industry standard for installations where space is constrained and a vertical angle orientation is required for proper actuator mounting. Optimized for North American heating demands, it handles a high flow coefficient (4.6 Cv), making it suitable for both two-pipe steam (up to 15 psi) and hot water (up to 150 psi) applications. The nickel-plated bronze construction provides superior corrosion resistance in demanding boiler loops and commercial hydronic heating environments. Engineered for longevity, the internal EPDM seat disc ensures positive, tight shutoff. Field service is streamlined via the replaceable cartridge insert, allowing contractors to swap all working parts without breaking the line. This valve body is specifically designed to be used with Resideo T104 series thermostatic actuators to provide autonomous, non-electric zone control, effectively maintaining precise room temperatures while reducing energy waste in high-capacity radiator systems.
Key Benefits
- High Flow Capacity: Delivers 4.6 Cv to meet the high BTU requirements of large radiators and convectors.
- Maintenance Efficiency: All internal components are housed in a replaceable cartridge, accessible with an MT110C1011 service tool without draining the system.
- Durability: Built with a heavy-duty nickel-plated bronze body and a resilient EPDM seat disc for reliable steam and hot water shutoff.
- Compact Integration: The 1/2" threaded angle configuration is ideal for tight headers and vertical supply pipe orientations.
- Autonomous Operation: When paired with a T104 actuator, it provides self-powered temperature regulation without the need for external wiring.
Common Questions
Is the Resideo V110E1004 compatible with my existing actuator?
This valve body is specifically designed for use with the Resideo T104 series of thermostatic actuators. It is not compatible with standard electric zone valve actuators unless designated for the V110 series.
Can I use this valve for both steam and hot water?
Yes, the Resideo V110E1004 is rated for two-pipe steam systems up to 15 psi and hot water systems up to 150 psi, provided the medium temperature does not exceed 248°F.
What is the benefit of the angle pattern over a straight body?
The angle body pattern allows for cleaner piping in vertical supply applications and often provides the necessary clearance for thermostatic heads in tight enclosures where a straight-through valve would not fit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
