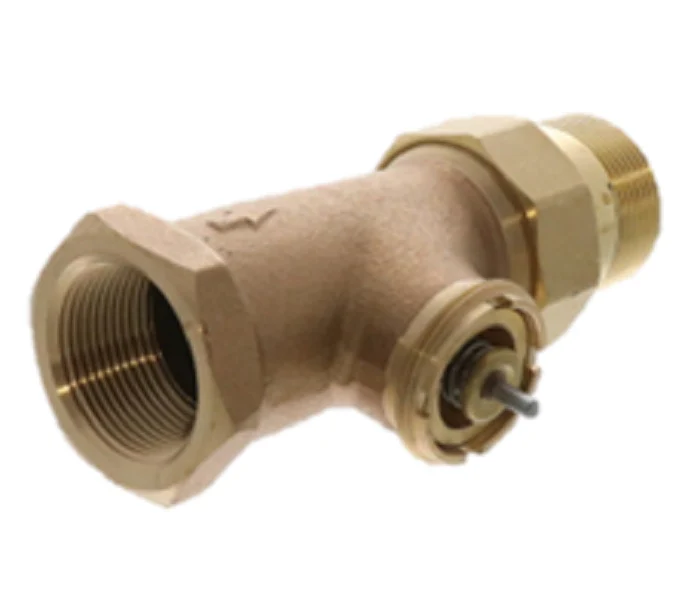

Resideo V110D1024 Valve
The Resideo V110D1024 Valve is a high-capacity thermostatic radiator valve designed specifically for the heavy-duty demands of North American two-pipe systems. This 1-1/4" NPT straight body radiator valve features a robust nickel-plated bronze construction, delivering a flow coefficient of 8 Cv and a steam capacity of up to 193,000 Btu/hr. Engineered for seamless integration with T104 thermostatic actuators, it enables precise, automatic temperature modulation in large-scale radiators and convectors. The internal cartridge design utilizes high-grade EPDM valve seat discs to ensure a bubble-tight shutoff on both hot water (up to 150 psi) and low-pressure steam (up to 15 psi) applications. For the service professional, the V110D1024 is highly maintainable; all critical working parts are housed in a replaceable cartridge that can be serviced under full system pressure using the MT110C tool, eliminating the need for total system draining during standard maintenance intervals.
Key Benefits- North American High Capacity: Optimized with an 8 Cv rating to meet the flow requirements of large-volume hydronic and steam heating units.
- Maintenance Efficiency: In-line serviceable cartridge allows for the replacement of seals and internal components without breaking the pipe connection.
- Broad Compatibility: Standard 1-1/4 inch threaded straight body pattern matches legacy Honeywell Braukmann footprints for straightforward retrofits.
- Durable Construction: Nickel-plated bronze body resists corrosion while the EPDM disc provides reliable closure in temperatures up to 248°F.
- ASHRAE Compliant: Meets ASHRAE Standard 102-1989 for non-electric thermostatic radiator valve performance.
Is the V110D1024 compatible with steam systems?
Yes, this valve is rated for two-pipe steam systems up to a maximum pressure of 15 psi. It is also fully compatible with hot water systems up to 150 psi.
Can I service the internals without draining the radiator?
Yes, by using the Resideo MT110C service tool, the internal cartridge can be replaced while the valve remains in-line and under pressure.
Which actuators work with this valve body?
This straight pattern body is specifically designed to be used with T104 series thermostatic controls for automatic temperature regulation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
